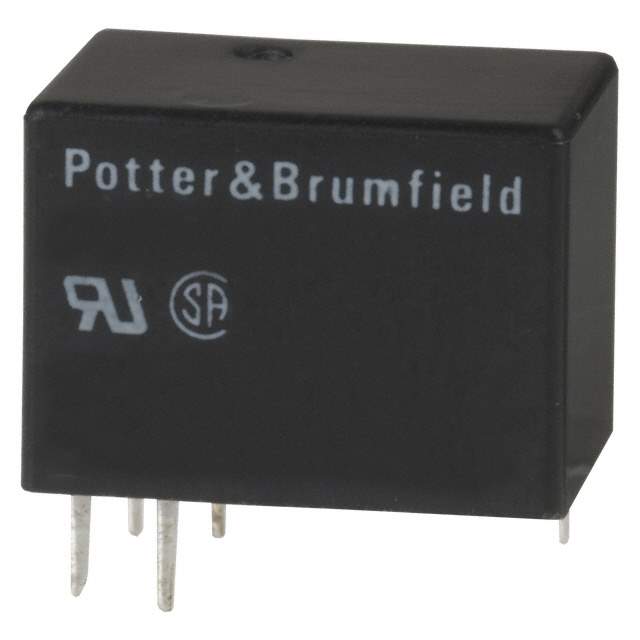

T81H5D312-24 Real Image
Same model may have multiple batches, images only for reference.

T81H5D312-24

Part No T81H5D312-24
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM SPDT 1A 24VDC / Telecom Relay SPDT (1 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series T81
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 60VDC - Max
Coil Current 8.6 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 16.8 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 7 ms
Temperature Range - Operating -30°C ~ 70°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Relay Type Telecom
Coil Resistance 2.8 kOhms
Base Product Number T81H5
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0020
Other Names -T81H5D312-24-SI,5-1393779-9,PB741,T81H5D31224
Standard Package 25
Win Source Part Number 1187112-T81H5D312-24
Ultra Librarian 3D Model Ultra Librarian T81H5D312-24 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays T81H5D312-24 is a telecom signal relay with a SPDT contact form.

  • Contact Form: SPDT
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.8 kOhms
  • Switching Voltage: 125VAC, 60VDC
  • Contact Rating: 1A
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -30°C to 70°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
