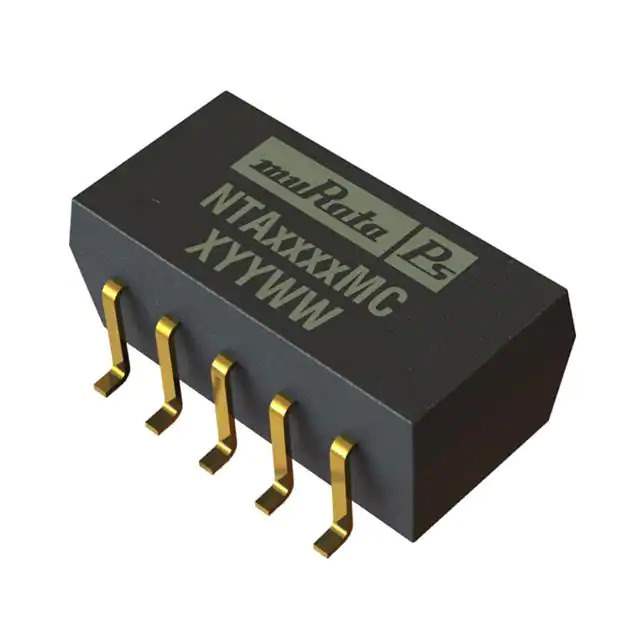

Same model may have multiple batches, images only for reference.

NTA0505MEC

Name: NTA0505MEC
Brand: Murata Power Solutions Inc.
SKU: 649611
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	NTA0505MEC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NTA (1W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	100mA, 100mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	80%
Mounting Type	Surface Mount
Package / Case	18-SMD Module, 10 Leads
Size / Dimension	0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
Base Product Number	NTA05
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649611-NTA0505MEC
Ultra Librarian 3D Model	Ultra Librarian NTA0505MEC CAD Model

Alternative Products

Description

The NTA0505MEC is a 1W isolated module DC-DC converter from the NTA series by Murata Power Solutions Inc..

Application: Power Supplies in Board Mount, Commercial Information Technology Equipment (ITE)
Package: Tube
Dimensions: 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
Outputs: Two
Maximum Output Current: 100mA each
Input Voltage Range: 4.5V to 5.5V
Output Voltages: 5V and -5V
Voltage Isolation: 1 kV
Efficiency: 80%
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to 85°C
Status: Obsolete
