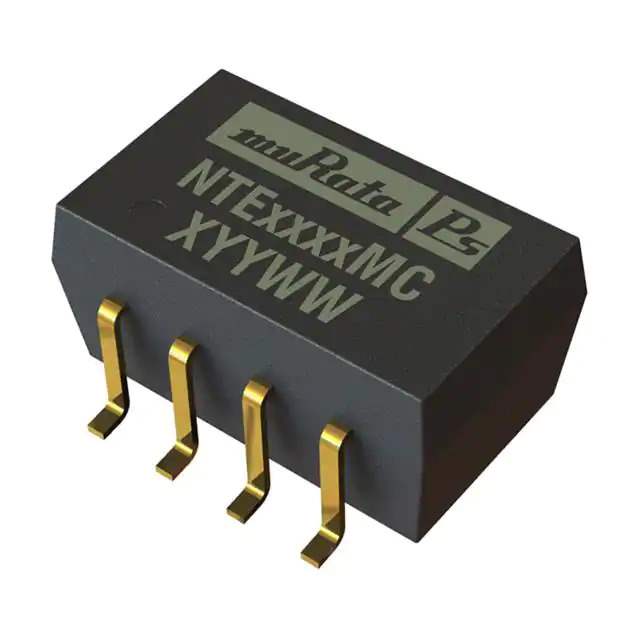

Same model may have multiple batches, images only for reference.

NTE0503MC

Name: NTE0503MC
Brand: Murata Power Solutions Inc.
SKU: 649772
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NTE0503MC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 1W / Isolated Module DC DC Converter 1 Output 3.3V 303mA 4.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NTE (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	3.3V
Current - Output (Max)	303mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	74%
Mounting Type	Surface Mount
Package / Case	14-SMD Module, 8 Leads
Size / Dimension	0.50" L x 0.30" W x 0.26" H (12.7mm x 7.6mm x 6.6mm)
Base Product Number	NTE05
Standard Package	35 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649772-NTE0503MC
Ultra Librarian 3D Model	Ultra Librarian NTE0503MC CAD Model

Alternative Products

Description

The NTE0503MC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

Series: NTE series
Power: 1W
Application: power supplies in board mount applications.
Size: 0.50" L x 0.30" W x 0.26" H
Package: tube
Input Voltage Range: 4.5V to 5.5V
Output Voltage: 3.3V
Maximum Output Current: 303mA
Isolation Voltage: 1 kV
Efficiency: 74%
Commercial Applications: Yes
Mounting: Surface Mountable
Operating Temperature: -40°C to 85°C
Status: Active
Standard Package: 35 pcs
