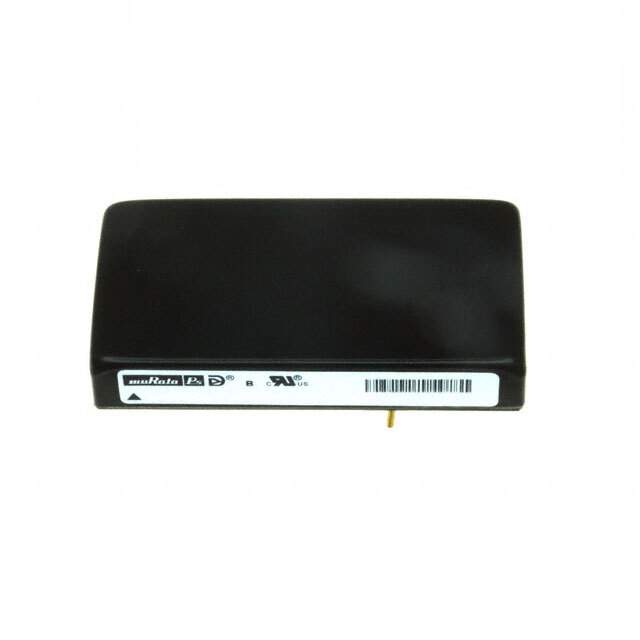

UWR-96/100-D48AHL2-Y Real Image
Same model may have multiple batches, images only for reference.

UWR-96/100-D48AHL2-Y

Part No UWR-96/100-D48AHL2-Y
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 96V 10W
Datasheet
UWR-96/100-D48AHL2-Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series UWR
Packaging Tube
Part Status Obsolete(EOL)
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 36V
Voltage Input MAX 75V
Voltage - Output 1 96V
Current - Output (Maximum) 100mA
Power (Watts) 10W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Features OCP, OTP, OVP, SCP, UVLO
Operating Temperature Range -40°C ~ 60°C
Efficiency 88%
Mounting Style Through Hole
Package 6-DIP Module, 4 Leads
Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Win Source Part Number 798944-UWR-96/100-D48AHL2-Y
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UWR-96/100-D48AHL2-Y CAD Model

Description

The Murata Power Solutions Inc. UWR-96/100-D48AHL2-Y is an isolated module.

  • Power: 10W
  • Efficiency: 88%
  • Voltage Isolation: 1.5kV (1500V)
  • Voltage Output: 96V
  • Package: 6-DIP, 4 Leads
  • Applications: ITE (Commercial)
  • Operating Temperature Range: -40°C to 60°C
  • Mounting Style: Through-hole
  • Features: OCP, OTP, OVP, SCP, UVLO
  • Series: UWR
  • Packaging: Tube
  • Outputs: One
  • Status: Obsolete (EOL)
  • Dimensions: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Input Voltage Range: 36V to 75V
  • Maximum Output Current: 100mA
