LM1117IMP-5.0

Part No LM1117IMP-5.0
Manufacturer National Semiconductor (TI)
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN FIXED POS LDO REG 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr National Semiconductor (TI)
Package Bulk
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 15V
Voltage - Output (Min/Fixed) 5V
Voltage Dropout (Max) 1.2V @ 800mA
Current - Output 800mA
Current - Quiescent (Iq) 5 mA
Current - Supply (Max) 10 mA
PSRR 75dB (120Hz)
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case TO-261-4, TO-261AA
Supplier Device Package SOT-223
Standard Package 1 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 614034-LM1117IMP-5.0

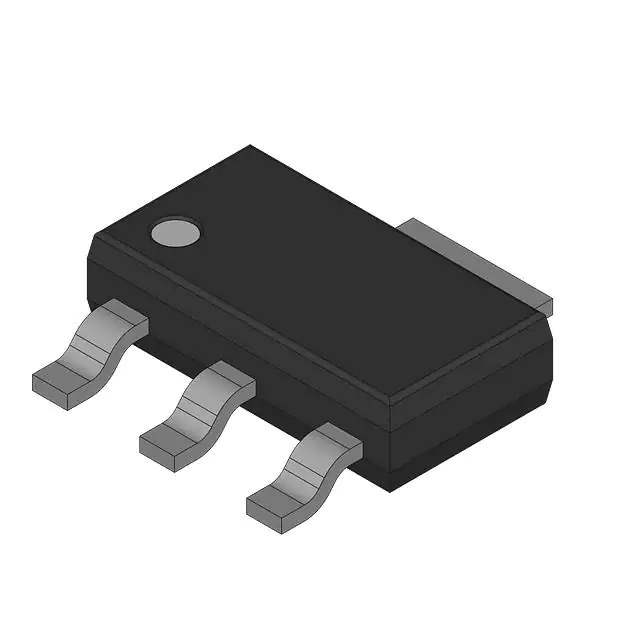

Ultra Librarian 3D Model Ultra Librarian LM1117IMP-5.0 CAD Model

Description

The LM1117IMP-5.0 is a linear voltage regulator integrated circuit (IC) designed for power management applications. It is part of the National Semiconductor (TI) product line and is currently in active production.

  • Package: bulk
  • Standard Package: 1 piece
  • Current Output: 800mA
  • Output Type: fixed
  • Maximum Input Voltage: 15V
  • Output Voltage: 5V
  • Mounting Type: surface
  • Package / Case: TO-261-4, TO-261AA
  • Temperature Range: -40°C to 125°C
  • Protection Features: over current and over temperature
  • PSRR: 75dB @ 120Hz
  • ECCN: EAR99
  • HTSUS Code: 8542.39.0001
