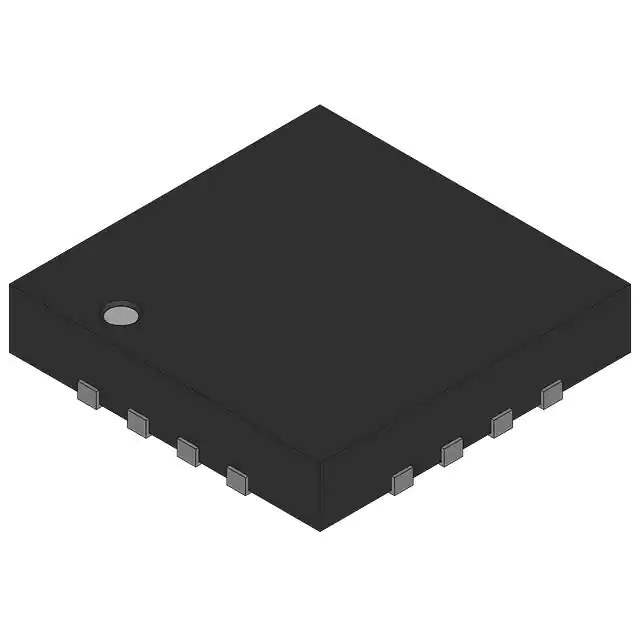

LM26400YSD Real Image
Same model may have multiple batches, images only for reference.

LM26400YSD

Part No LM26400YSD
Manufacturer National Semiconductor (TI)
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description 2A, 500KHZ BICMOS
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr National Semiconductor (TI)
Package Bulk
Product Status Active
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 2
Voltage - Input (Min) 3V
Voltage - Input (Max) 20V
Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 16V
Current - Output 2A, 2A
Frequency - Switching 500kHz
Synchronous Rectifier No
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 16-WFDFN Exposed Pad
Supplier Device Package 16-WSON (5x5)
Base Product Number LM26400
Standard Package 198 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 614948-LM26400YSD
Ultra Librarian 3D Model Ultra Librarian LM26400YSD CAD Model

Description

The 614948-LM26400YSD is a DC-DC switching regulator integrated circuit (IC) used in power management applications.

  • Current output: 2A for each output
  • Output type: adjustable
  • Topology: buck
  • Switching frequency: 500kHz
  • Outputs: two outputs with a positive configuration
  • Voltage input range: 3V to 20V
  • Mounting: surface mount
  • Package: 16-WFDFN Exposed Pad
  • Manufacturer: National Semiconductor (TI)
  • Status: active
  • Application: power supply and battery-powered devices
