The LM3370SDX-3021 is a high-efficiency step-down DC-DC converter from Texas Instruments (formerly National Semiconductor). It is designed to provide a regulated output voltage from a higher input voltage. This device is suitable for portable devices and battery-powered applications due to its high efficiency and small size. The fixed 3.0V output voltage simplifies design and reduces the number of external components required.

Applications:

• Mobile Phones: Used to regulate voltage for various components within the phone.
• Portable Media Players: Suitable for regulating power in portable media devices.
• Digital Cameras: Used to provide stable voltage for camera components.
• PDAs and Handheld Devices: Employed in handheld devices for efficient power conversion.

Features:

• High Efficiency: Optimizes power conversion to extend battery life.
• Fixed 3.0V Output Voltage: Simplifies design and reduces component count.
• Low Quiescent Current: Minimizes power consumption when idle.
• Small Solution Size: Allows for use in space-constrained applications.
• Over-Temperature Protection: Protects the device from overheating.

Benefits:

• Extended Battery Life: High efficiency minimizes power consumption.
• Simplified Design: Fixed output voltage reduces design complexity.
• Compact Solution: Small size allows for use in portable devices.
• Robust Protection: Over-temperature protection ensures reliability.
• Versatile Application: Suitable for a wide range of portable applications.

Additional Details:

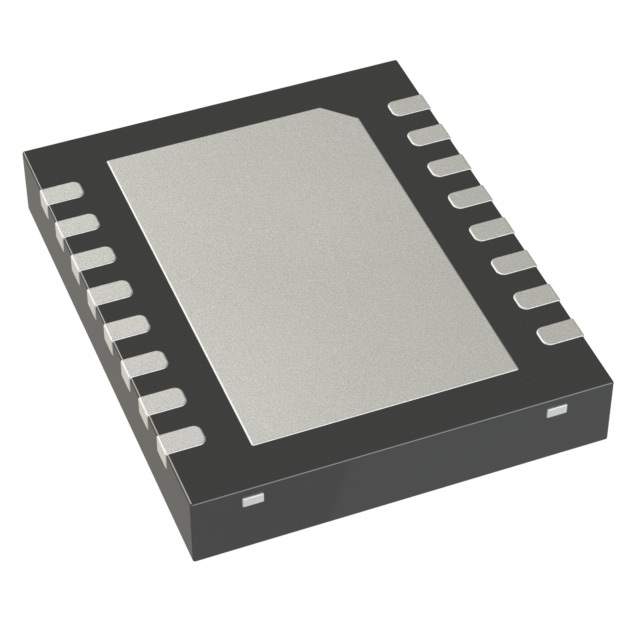

The LM3370SDX-3021 operates with a wide input voltage range, making it suitable for various battery configurations. The high switching frequency allows for the use of small external components, further reducing the solution size. The device includes over-temperature protection to prevent damage from overheating. It is typically available in a small outline package, such as a WSON or similar, to minimize board space. The low quiescent current is crucial for maximizing battery life in portable devices.
