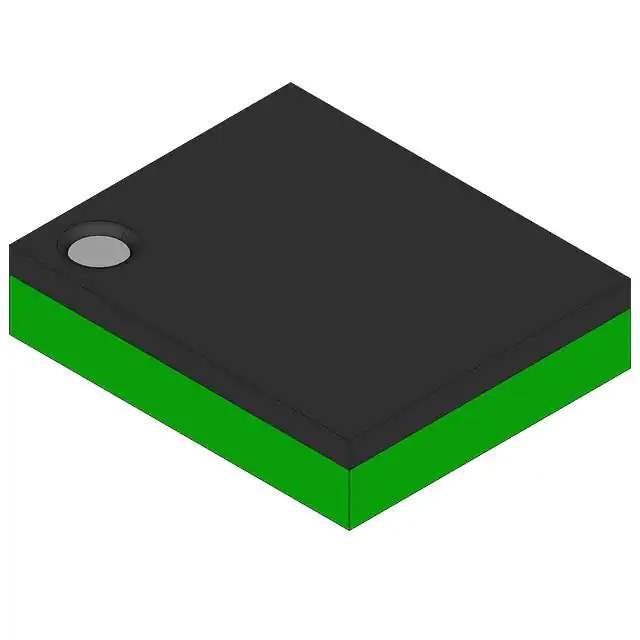

LM3503ITL-35 Real Image
Same model may have multiple batches, images only for reference.

LM3503ITL-35

Part No LM3503ITL-35
Manufacturer National Semiconductor (TI)
Catalog PMIC - LED Drivers
Description LED DRIVER, 10-SEGMENT, PBGA10
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr National Semiconductor (TI)
Package Bulk
Product Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 2
Voltage - Supply (Min) 2.5V
Voltage - Supply (Max) 5.5V
Voltage - Output 35V
Current - Output / Channel 750mA (Switch)
Frequency 1MHz
Dimming Analog, PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 10-WFBGA, DSBGA
Supplier Device Package 10-DSBGA
Standard Package 207 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 616271-LM3503ITL-35
Ultra Librarian 3D Model Ultra Librarian LM3503ITL-35 CAD Model

Description

The LM3503ITL-35 is a DC-DC regulator specifically designed for LED backlight applications.

  • Topology: Step-up (boost)
  • Output Voltage: 35V
  • Output Current: 750mA
  • Voltage Supply Range: 2.5V to 5.5V
  • Dimming Options: Analog and PWM
  • Package: Small 10-DSBGA
  • Suitable for: Surface mount applications
  • Applications: Displays, LCD panels, and other backlighting systems
  • Benefits: High efficiency and precise control for optimal LED brightness
