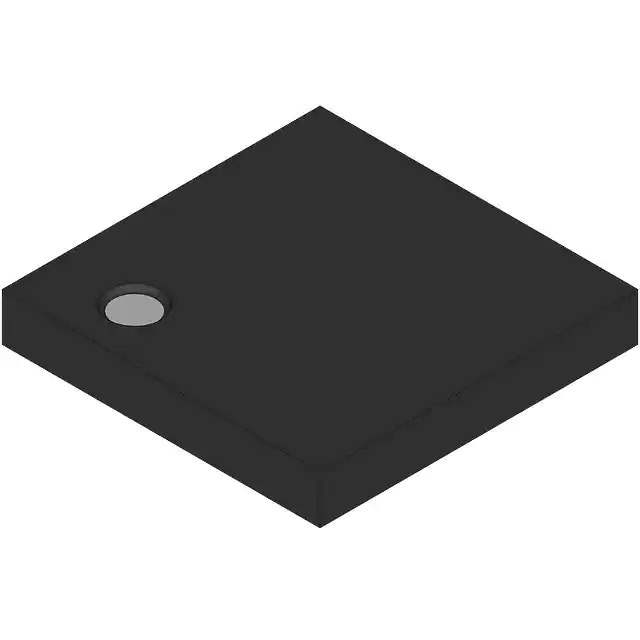

LMH6515SQ Real Image
Same model may have multiple batches, images only for reference.

LMH6515SQ

Part No LMH6515SQ
Manufacturer National Semiconductor (TI)
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC VARIABLE GAIN 1 CIRC 16WQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr National Semiconductor (TI)
Series LMH®
Package Bulk
Product Status Active
Amplifier Type Variable Gain
Number of Circuits 1
Output Type Differential
-3db Bandwidth 600 MHz
Current - Supply 107mA
Voltage - Supply Span (Min) 4 V
Voltage - Supply Span (Max) 5.25 V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 16-WFQFN Exposed Pad
Supplier Device Package 16-WQFN (4x4)
Standard Package 109 pcs
MSL Level 2 (1 Year)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 618765-LMH6515SQ
Ultra Librarian 3D Model Ultra Librarian LMH6515SQ CAD Model

Description

The LMH6515SQ is an instrumentation amplifier integrated circuit designed for linear amplification applications.

  • Series: LMH series by National Semiconductor (TI)
  • Output Type: Differential
  • -3db Bandwidth: 600MHz
  • Type: Variable gain amplifier
  • Voltage Supply: 4V to 5.25V
  • Package: Surface mountable 16-WFQFN exposed pad
  • Operating Temperature: -40°C to 85°C
  • Status: Active product
