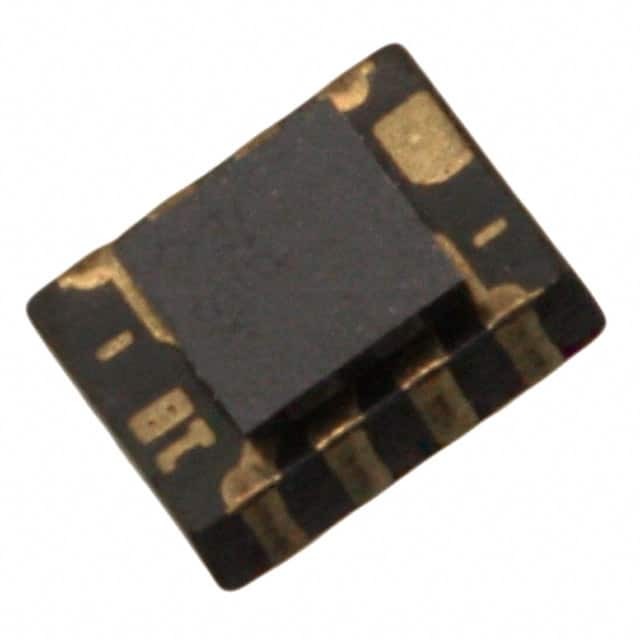

LMZ10501SE/NOPB
Same model may have multiple batches, images only for reference.

LMZ10501SE/NOPB

Part No LMZ10501SE/NOPB
Manufacturer National Semiconductor (TI)
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-3.6 V 10W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr National Semiconductor (TI)
Series SIMPLE SWITCHER®
Package Bulk
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.7V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.6 ~ 3.6 V
Current - Output (Max) 1A
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 125°C
Efficiency 95%
Mounting Type Surface Mount
Package / Case 8-SMD Module
Size / Dimension 0.12" L x 0.10" W x 0.05" H (3.0mm x 2.5mm x 1.2mm)
Supplier Device Package 8-POS (3x2.5)
Standard Package 1,000 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 877770-LMZ10501SE/NOPB
Ultra Librarian 3D Model Ultra Librarian LMZ10501SE/NOPB CAD Model

Description

The 877770-LMZ10501SE/NOPB is a non-isolated PoL module from the SIMPLE SWITCHER series by National Semiconductor.

  • Series: SIMPLE SWITCHER
  • Type: Non-Isolated PoL Module
  • Output Feature: Adjustable
  • Application: Power Supply Board Mount DC-DC Converter
  • Size/Dimension: 0.12" L x 0.10" W x 0.05" H (3.0mm x 2.5mm x 1.2mm)
  • Application Area: ITE (Commercial) Devices
  • Power Rating: 10W
  • Efficiency: 95%
  • Voltage - Input: 2.7V to 5.5V
  • Output Current: 1A (Max)
  • Output Voltage: Adjustable, 0.6V to 3.6V
  • Mounting Type: Surface Mountable
  • Package: 8-SMD
  • Temperature Range: -40°C to 125°C
  • Status: Obsolete
  • Manufacturer: National Semiconductor (TI)
