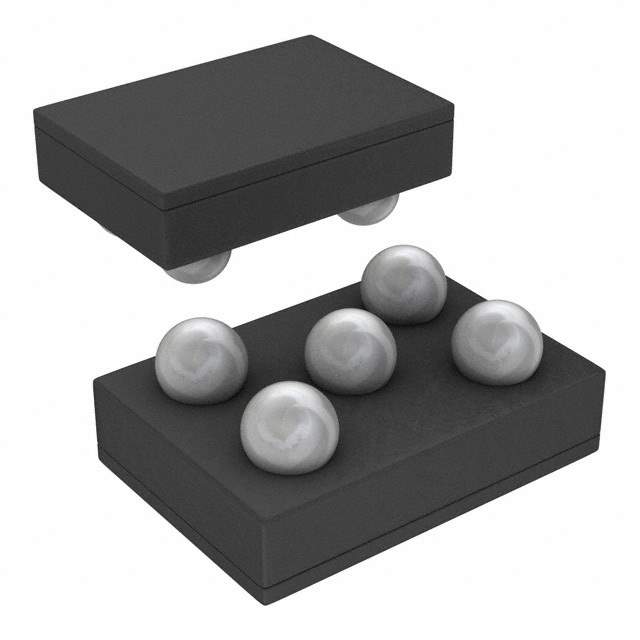

The LP3985IBL-3.0 is a low-noise, low-dropout (LDO) voltage regulator from Texas Instruments (formerly National Semiconductor). This regulator is designed to provide a stable and clean 3.0V output voltage with very low quiescent current, making it ideal for battery-powered and noise-sensitive applications. It features a small package size and requires minimal external components, simplifying the design process.

Applications

• Cellular Phones
• PDAs
• GPS Receivers
• MP3 Players
• Wireless Handsets

Features

• Low Dropout Voltage: Operates with minimal input-output voltage differential.
• Low Noise: Provides clean and stable output voltage.
• Low Quiescent Current: Minimizes power consumption in standby mode.
• High Output Accuracy: Ensures precise voltage regulation.
• Overcurrent Protection: Protects the device from damage due to excessive current draw.
• Thermal Shutdown Protection: Shuts down the device in case of overheating to prevent damage.
• Small Package: Available in a compact package for space-constrained applications.

Benefits

• Extended Battery Life: Low quiescent current maximizes battery life in portable devices.
• Improved Audio Performance: Low noise output voltage enhances audio quality in sensitive applications.
• Simplified System Design: Requires minimal external components.
• Enhanced System Reliability: Built-in protection features ensure stable and reliable operation.

Additional Details

The LP3985IBL-3.0 requires only a small output capacitor for stable operation. Its low dropout voltage allows it to operate with input voltages close to the output voltage, maximizing efficiency. The device’s low noise characteristics make it suitable for powering sensitive analog and digital circuits, such as audio amplifiers and RF transceivers.

The LDO regulator is commonly used in portable electronic devices where battery life is a critical concern. Its small size and minimal external component requirements make it easy to integrate into compact designs. The LP3985IBL-3.0 ensures stable and reliable power delivery, contributing to the overall performance and longevity of the application.
