Same model may have multiple batches, images only for reference.

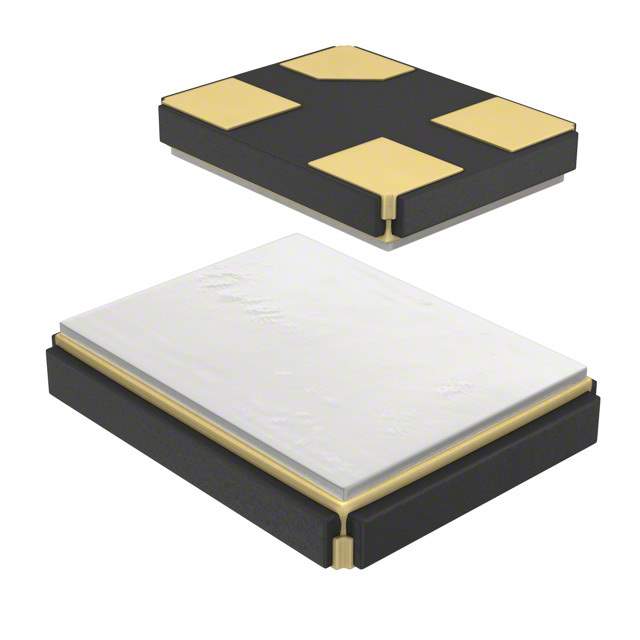

NX2016SA-26M-STD-CZS-2 Real Image
Same model may have multiple batches, images only for reference.

NX2016SA-26M-STD-CZS-2

Part No NX2016SA-26M-STD-CZS-2
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 26.0000MHZ 8PF SMD  /  26 MHz ±15ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX2016SA
Package Tape & Reel
Type MHz Crystal
Frequency 26 MHz
Frequency Stability ±25ppm
Frequency Tolerance ±15ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names NX2016SA-26.000M-STD-CZS-2,644-1221-2,644-1221-1,50157483,644-1221-6
Standard Package 3,000
Win Source Part Number 962163-NX2016SA-26M-STD-CZS-2
Ultra Librarian 3D Model Ultra Librarian NX2016SA-26M-STD-CZS-2 CAD Model

Description

The NX2016SA MHz Crystal is a high-quality electronic component manufactured by NDK America, Inc.

  • Product: NX2016SA MHz Crystal
  • Manufacturer: NDK America, Inc.
  • Operating Mode: Fundamental
  • Frequency: 26 MHz
  • Load Capacitance: 8pF
  • Frequency Tolerance: ±15ppm
  • Frequency Stability: ±25ppm
  • ESR: 60 Ohms
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • Package: 4-SMD, No Lead
  • Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Series: NX2016SA
  • Standard Package: 3,000 units
  • Alternative Parts: CX2016DB26000D0GPSC1, CX2520DB26000D0GPSC1, ECS-260-10-37-RWM-TR, CX2016DB27000D0GPSC1, ABM10-26.000MHZ-7-A15-T, ABM10-24.000MHZ-8-7-A15-T
