Same model may have multiple batches, images only for reference.

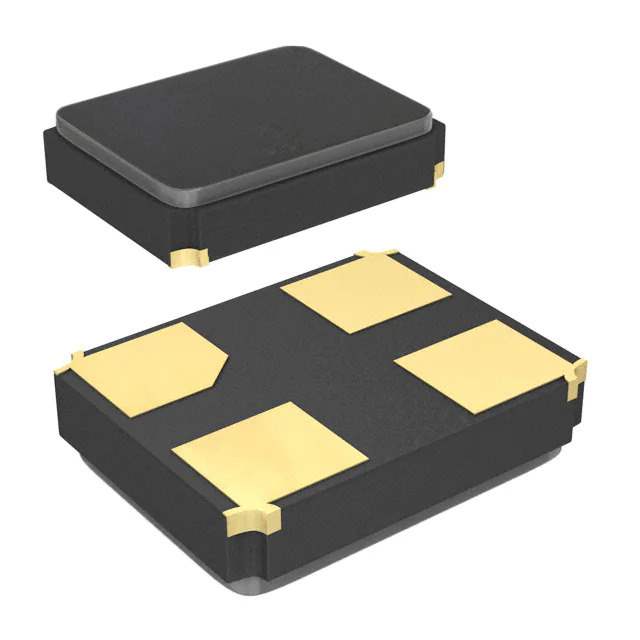

NX3225GA-12.288M-STD-CRG-2 Real Image
Same model may have multiple batches, images only for reference.

NX3225GA-12.288M-STD-CRG-2

Part No NX3225GA-12.288M-STD-CRG-2
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 12.2880MHZ 8PF SMD / 12.288 MHz ±20ppm Crystal 8pF 100 Ohms 4-SMD, No Lead
Datasheet
NX3225GA-12.288M-STD-CRG-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK
Series NX3225GA
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 12.288 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 887950-NX3225GA-12.288M-STD-CRG-2
Ultra Librarian 3D Model Ultra Librarian NX3225GA-12.288M-STD-CRG-2 CAD Model

Description

The NX3225GA-12.288M-STD-CRG-2 is a 12.288 MHz crystal in the NX3225GA series.

  • Mounting: surface mount
  • Package Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Seated Height: 0.035" (0.90mm)
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±20ppm
  • Mode: fundamental
  • Load Capacitance: 8pF
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: NDK
  • Standard Package: 3,000 pcs
  • Applications: oscillators and resonators
