Same model may have multiple batches, images only for reference.

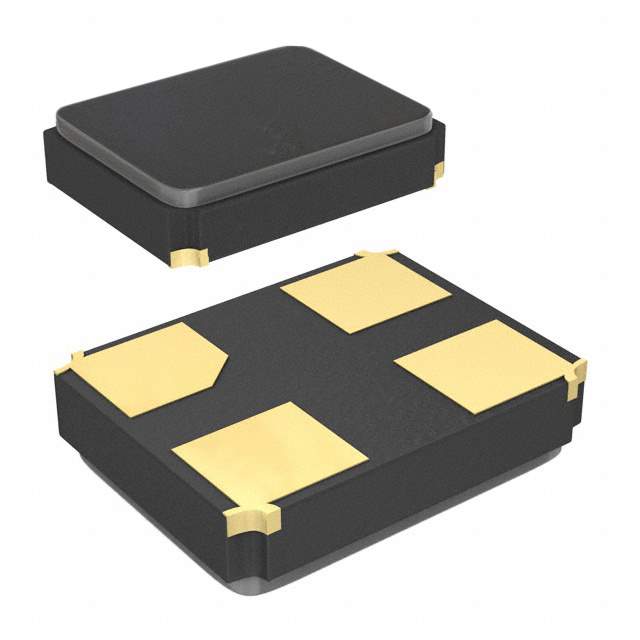

NX3225GA-32M-EXS00A-CG02611 Real Image
Same model may have multiple batches, images only for reference.

NX3225GA-32M-EXS00A-CG02611

Part No NX3225GA-32M-EXS00A-CG02611
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 32.0000MHZ 10PF SMD / 32 MHz ±20ppm Crystal 10pF 50 Ohms 4-SMD, No Lead
Datasheet
NX3225GA-32M-EXS00A-CG02611 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer NDK America, Inc.
Packaging Reel - TR
Type MHz Crystal
Frequency 32 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating 0°C ~ 70°C
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number 644-1250-1,644-1250-2,50157428,644-1250-6
Standard Package 3,000
Win Source Part Number 1328334-NX3225GA-32M-EXS00A-CG02611
Ultra Librarian 3D Model Ultra Librarian NX3225GA-32M-EXS00A-CG02611 CAD Model

Description

The NDK NX3225GA-32M-EXS00A-CG02611 is a 32 MHz crystal oscillator manufactured by NDK America Inc.

  • RoHS Compliant: Yes
  • Frequency Stability: ±20ppm
  • Standard Package: 3,000
  • Mounting Type: Surface Mount
  • Operating Temperature Range: 0°C to 70°C
