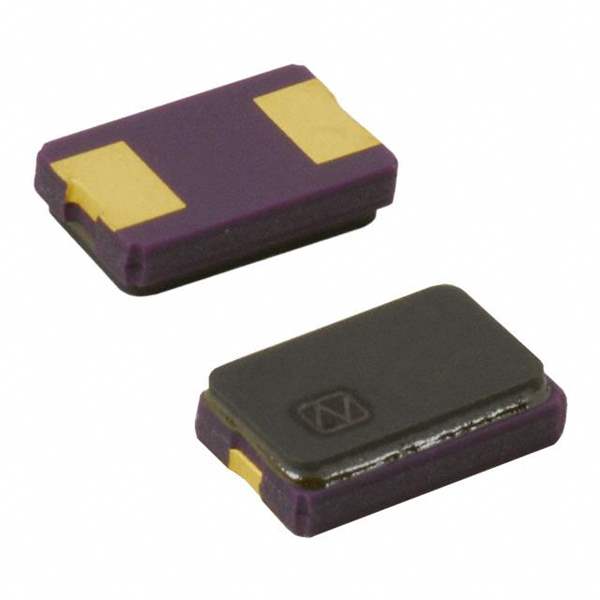

NX5032GA-16.000000MHZ-LN-CD-1 NDK NX5032GA-16.000000MHZ-LN-CD-1 Real Image
Same model may have multiple batches, images only for reference.
NX5032GA-16.000000MHZ-LN-CD-1 NDK NX5032GA-16.000000MHZ-LN-CD-1 Real Image
NX5032GA-16.000000MHZ-LN-CD-1 NDK NX5032GA-16.000000MHZ-LN-CD-1 Real Image
Same model may have multiple batches, images only for reference.

NX5032GA-16.000000MHZ-LN-CD-1

Part No NX5032GA-16.000000MHZ-LN-CD-1
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 16.0000MHZ 8PF SMD
Datasheet
NX5032GA-16.000000MHZ-LN-CD-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 16MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 8pF
ESR 120 Ohm
Operating Mode Fundamental
Temperature Range - Operating -10°C to 70°C
Mounting SMD (SMT)
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 125908-NX5032GA-16.000000MHZ-LN-CD-1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NX5032GA-16.000000MHZ-LN-CD-1 CAD Model

Description

The NDK America, Inc. MHz Crystal is a high-quality electronic component that is perfect for use in a variety of applications.

  • Frequency: 16MHz
  • Frequency stability: ±50ppm
  • ESR: 120 Ohm
  • Frequency tolerance: ±50ppm
  • Height: 0.059" (1.50mm)
  • Mounting: SMD (SMT) technology
  • Popularity: medium
  • Supply and demand status: balance
