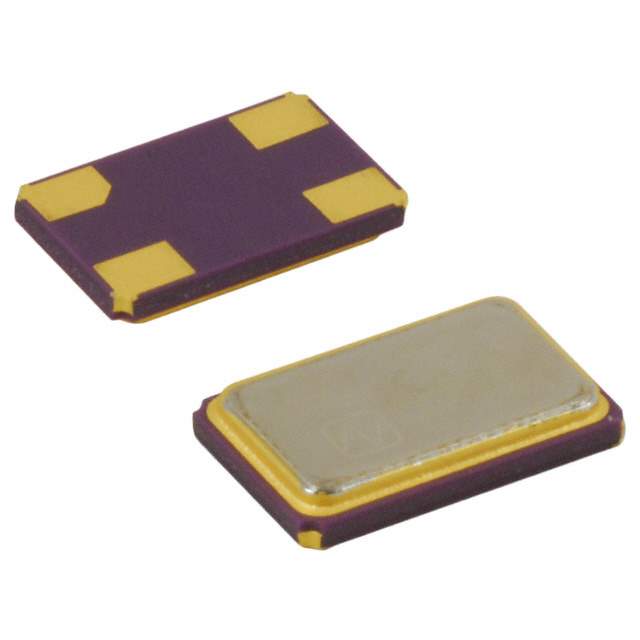

NX5032SA-13.000000MHZ-G1 Real Image1 NX5032SA-13.000000MHZ-G1 Real Image2
Same model may have multiple batches, images only for reference.
NX5032SA-13.000000MHZ-G1 Real Image1 NX5032SA-13.000000MHZ-G1 Real Image2
NX5032SA-13.000000MHZ-G1 Real Image1 NX5032SA-13.000000MHZ-G1 Real Image2
Same model may have multiple batches, images only for reference.

NX5032SA-13.000000MHZ-G1

Part No NX5032SA-13.000000MHZ-G1
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 13.0000MHZ 8PF SMD
Datasheet
NX5032SA-13.000000MHZ-G1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Series NX5032SA
Packaging Reel package
Type MHz Crystal
Frequency 13MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 40 Ohm
Operating Mode Fundamental
Operating Temperature Range -20°C ~ 85°C
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.193" L x 0.122" W (4.90mm x 3.10mm)
Height - Seated (Maximum) 0.033" (0.85mm)
Win Source Part Number 790879-NX5032SA-13.000000MHZ-G1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NX5032SA-13.000000MHZ-G1 CAD Model

Description

The NDK America, Inc. 790879-NX5032SA-13.000000MHZ-G1 MHz crystal is a high-quality component.

  • Frequency: 13MHz
  • Frequency Tolerance: ±10ppm
  • Operating Mode: fundamental
  • ESR: 40 Ohm
  • Package: 4-SMD, no lead
  • Load Capacitance: 8pF
  • Frequency Stability: ±10ppm
  • Operating Temperature: -20°C to 85°C
  • Dimension: 0.193" L x 0.122" W (4.90mm x 3.10mm)
  • Height: 0.033" (0.85mm)
  • Supply and Demand Status: balanced
