Same model may have multiple batches, images only for reference.

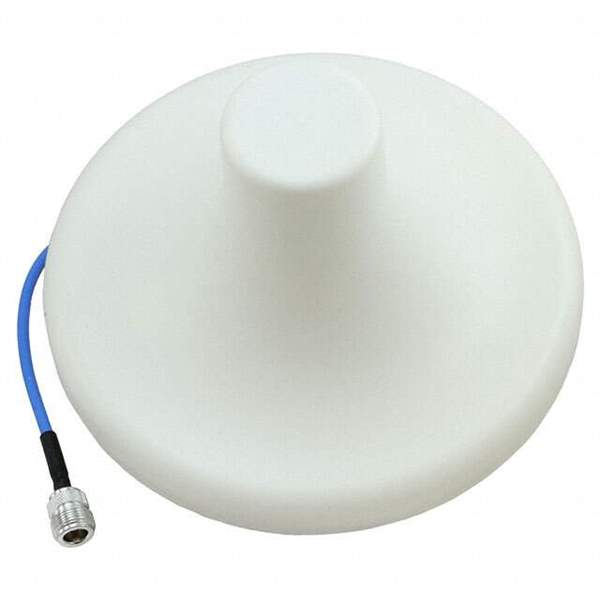

EM-B40004-NJ Real Image
Same model may have multiple batches, images only for reference.

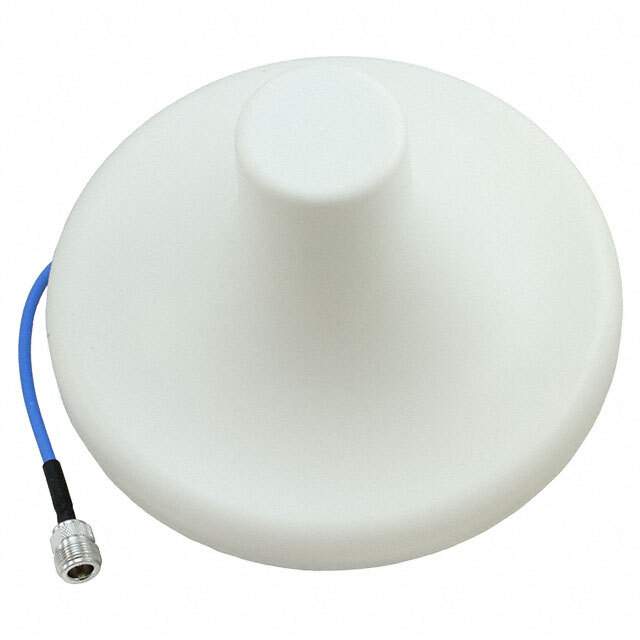

EM-B40004-NJ

Part No EM-B40004-NJ
Manufacturer Nearson Inc.
Catalog RF Antennas
Description RF ANT 829MHZ/2.2GHZ DOME N FEM / 829MHz, 2.2GHz Dome RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz 2dBi, 5dBi N Type Female Panel Mount
Datasheet
EM-B40004-NJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Nearson Inc.
Package Bulk
Frequency Group Wide Band
Frequency (Center/Band) 829MHz, 2.2GHz
Frequency Range 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
Antenna Type Dome
Number of Bands 2
VSWR 1.8
Gain 2dBi, 5dBi
Power - Max 50 W
Termination N Type Female
Mounting Type Panel Mount
Height (Max) 4.500" (114.30mm)
Base Product Number EM-B40004
MSL Level Not Applicable
ECCN EAR99
HTSUS 8529.10.9100
Other Names 730-1074
Standard Package 1
Win Source Part Number 1158250-EM-B40004-NJ
Ultra Librarian 3D Model Ultra Librarian EM-B40004-NJ CAD Model

Description

The Nearson Inc. electronic component is a high-quality RF/IF and RFID>RF Antenna.

  • Win Source Part Number: 1158250-EM-B40004-NJ
  • Frequency Range: 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
  • Maximum Power: 50W
  • VSWR: 1.8
  • Gain: 2dBi, 5dBi
  • Antenna Type: Dome
  • Bands: Two
