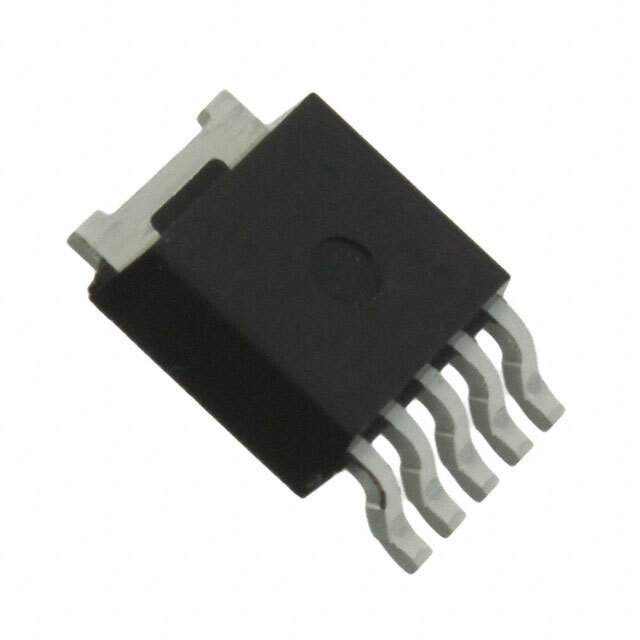

The NJM2846DL3-05 is a 500mA Low Dropout (LDO) regulator from New Japan Radio (NJR). It provides a stable 5V output voltage with low dropout voltage and low current consumption. The regulator is designed for various applications requiring a regulated voltage source, such as microcontroller power supplies, sensor circuits, and portable devices.

Applications:

• Microcontroller power supplies
• Sensor circuits
• Portable devices
• Battery-powered equipment
• Post-regulation for switching power supplies

Features:

• Output Voltage: Fixed 5V output.
• Low Dropout Voltage: Ensures stable output voltage even with low input voltage.
• Output Current: Up to 500mA output current.
• Low Quiescent Current: Minimizes power consumption, extending battery life in portable applications.
• Overcurrent Protection: Protects the regulator and the load from overcurrent conditions.
• Thermal Shutdown Protection: Protects the regulator from overheating.
• Small Package: Available in a compact package for space-constrained applications.

Benefits:

• Stable Voltage Supply: Provides a regulated 5V output for reliable operation of connected devices.
• Extended Battery Life: Low quiescent current maximizes battery life in portable devices.
• Robust Protection: Overcurrent and thermal shutdown protection prevent damage to the regulator and the load.
• Simplified Design: Integrated protection features simplify circuit design and reduce component count.
• Compact Size: Small package allows for use in space-constrained applications.

Additional Details:

The NJM2846DL3-05 requires external input and output capacitors for stability. The recommended capacitor values are specified in the datasheet. The regulator's dropout voltage depends on the output current and temperature. The overcurrent protection is typically a foldback current limit, which reduces the output current when an overcurrent condition is detected. Thermal shutdown activates when the junction temperature exceeds a certain threshold. This device is often used to provide a clean and stable 5V supply for microcontrollers and sensors in embedded systems. It is available in a SOT-89 package.
