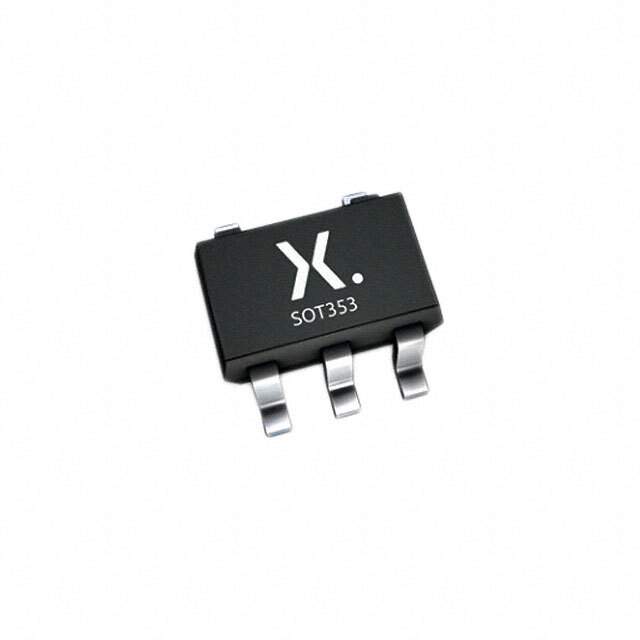

74AHC1G09GW-Q100H Real Image1 74AHC1G09GW-Q100H Real Image2
Same model may have multiple batches, images only for reference.
74AHC1G09GW-Q100H Real Image1 74AHC1G09GW-Q100H Real Image2
74AHC1G09GW-Q100H Real Image1 74AHC1G09GW-Q100H Real Image2
Same model may have multiple batches, images only for reference.

74AHC1G09GW-Q100H

Part No 74AHC1G09GW-Q100H
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE AND OD 1CH 2-INP 5TSSOP
Datasheet
74AHC1G09GW-Q100H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100, 74AHC
Package Tape & Reel
Product Status Active
Logic Type AND Gate
Number of Circuits 1
Number of Inputs 2
Features Open Drain
Voltage - Supply 2V ~ 5.5V
Current - Quiescent (Max) 1 µA
Current - Output High, Low -, 8mA
Input Logic Level - Low 0.5V ~ 1.65V
Input Logic Level - High 1.5V ~ 3.85V
Max Propagation Delay @ V, Max CL 7.5ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 5-TSSOP
Package / Case 5-TSSOP, SC-70-5, SOT-353
Base Product Number 74AHC1G09
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371090-74AHC1G09GW-Q100H
Ultra Librarian 3D Model Ultra Librarian 74AHC1G09GW-Q100H CAD Model

Description

The 74AHC1G09GW-Q100H is an AND gate integrated circuit from Nexperia USA Inc.

  • Series: 74AHC
  • Application: automotive applications
  • Temperature Range: -40°C to 125°C
  • Package: 5-TSSOP
  • Mounting Type: Surface Mountable
  • Supply Voltage Range: 2V to 5.5V
  • Quiescent Current: 1µA
  • Outputs: Open Drain
  • Maximum Propagation Delay: 7.5ns @ 5V and 50pF
