Same model may have multiple batches, images only for reference.

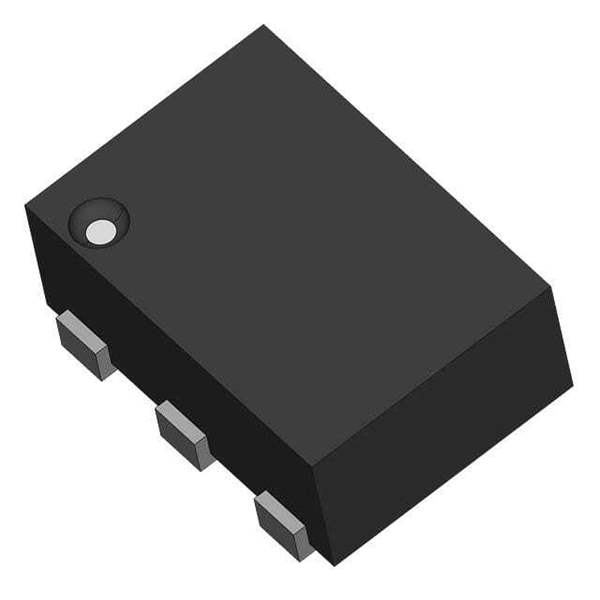

74AUP2G14GS,132 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74AUP2G14GS,132

Part No 74AUP2G14GS,132
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC INVERT SCHMITT 2CH 2-IN 6XSON
Datasheet
74AUP2G14GS,132 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74AUP
Package Tape & Reel
Product Status Active
Logic Type Inverter
Number of Circuits 2
Number of Inputs 2
Features Schmitt Trigger
Voltage - Supply 0.8V ~ 3.6V
Current - Quiescent (Max) 500 nA
Current - Output High, Low 4mA, 4mA
Input Logic Level - Low 0.1V ~ 0.88V
Input Logic Level - High 0.6V ~ 2.29V
Max Propagation Delay @ V, Max CL 6.1ns @ 3.3V, 30pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 6-XSON, SOT1202 (1x1)
Package / Case 6-XFDFN
Base Product Number 74AUP2G14
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1173536-74AUP2G14GS,132
Ultra Librarian 3D Model Ultra Librarian 74AUP2G14GS,132 CAD Model

Description

The 74AUP2G14GS,132 is a dual inverter logic gate with schmitt trigger from Nexperia USA Inc.

  • Series: 74AUP
  • Application: Logic Gate and Inverter
  • Current Output High: 4mA
  • Current Output Low: 4mA
  • Maximum Propagation Delay: 6.1ns @ 3.3V and 30pF
  • Quiescent Current: 500nA
  • Voltage Supply Range: 0.8V to 3.6V
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: 6-XFDFN
  • Feature: Schmitt Trigger
