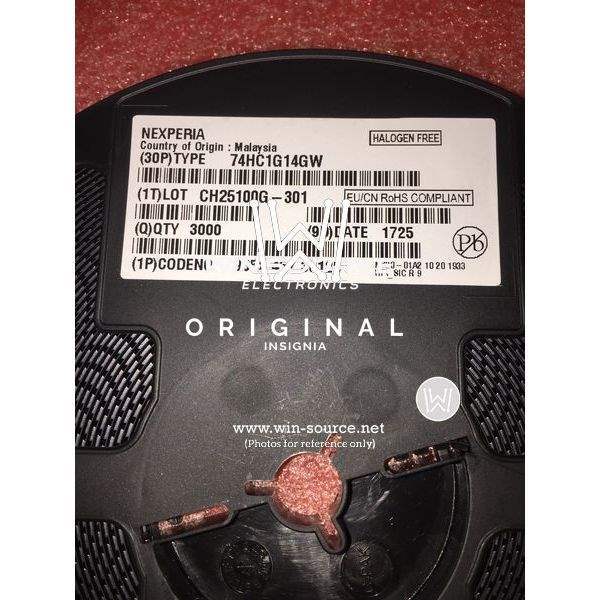

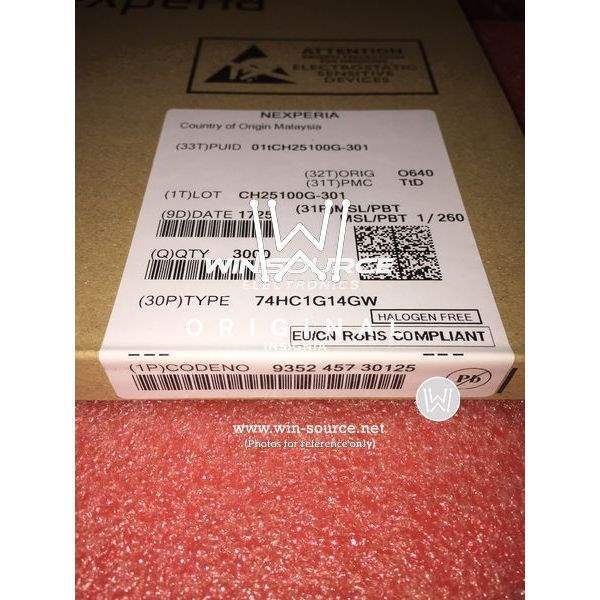

74HC1G14GW,125 Nexperia USA Inc. 74HC1G14GW,125 label picture 1 74HC1G14GW,125 label picture 2 74HC1G14GW,125 real image
Same model may have multiple batches, images only for reference.
74HC1G14GW,125 Nexperia USA Inc. 74HC1G14GW,125 label picture 1 74HC1G14GW,125 label picture 2 74HC1G14GW,125 real image
74HC1G14GW,125 Nexperia USA Inc. 74HC1G14GW,125 label picture 1 74HC1G14GW,125 label picture 2 74HC1G14GW,125 real image
Same model may have multiple batches, images only for reference.

74HC1G14GW,125

Part No 74HC1G14GW,125
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC INV SCHMITT TRIGGER 5TSSOP
Datasheet
74HC1G14GW,125 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Features Schmitt Trigger
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 20μA
Current - Output High, Low 2.6mA, 2.6mA
Logic Level - Low 0.3 V to 1.2 V
Logic Level - High 1.5 V to 4.2 V
Max Propagation Delay @ V, Max CL 32ns @ 6V, 50pF
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 5-TSSOP
Dimension 5-TSSOP, SC-70-5, SOT-353
Win Source Part Number 1008288-74HC1G14GW,125
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 74HC1G14GW,125 CAD Model

Description

The Nexperia USA Inc. 1008288-74HC1G14GW,125 is a Schmitt Trigger inverter that is perfect for use in a variety of electronic devices.

  • Maximum Propagation Delay: 32ns
  • Current Output High: 2.6mA
  • Current Output Low: 2.6mA
  • Supply and Demand Status: Sufficient
  • Package: 5-TSSOP
  • Temperature Range: -40°C to 125°C
  • Supply Voltage Range: 2V to 6V
