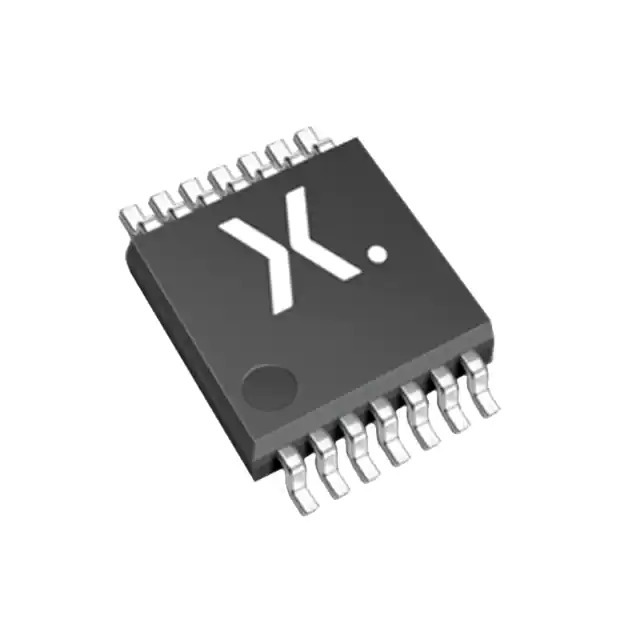

74HC02PW-Q100,118 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74HC02PW-Q100,118

Part No 74HC02PW-Q100,118
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE NOR 4CH 2-INP 14TSSOP / NOR Gate IC 4 Channel 14-TSSOP
Datasheet
74HC02PW-Q100,118 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100, 74HC
Package Tape & Reel
Product Status Active
Logic Type NOR Gate
Number of Circuits 4
Number of Inputs 2
Features -
Voltage - Supply 2V ~ 6V
Current - Quiescent (Max) 2 µA
Current - Output High, Low 5.2mA, 5.2mA
Input Logic Level - Low 0.5V ~ 1.8V
Input Logic Level - High 1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL 15ns @ 6V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 14-TSSOP
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Base Product Number 74HC02
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371125-74HC02PW-Q100,118
Ultra Librarian 3D Model Ultra Librarian 74HC02PW-Q100,118 CAD Model

Description

The 74HC02PW-Q100,118 is a NOR Gate integrated circuit from Nexperia USA Inc.

  • Series: 74HC
  • Application: Automotive
  • Standard Compliance: AEC-Q100
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface-Mount
  • Package: 14-TSSOP
  • Voltage Supply: 2V to 6V
  • Circuits: Four
  • Inputs: Two
  • Quiescent Current: 2μA (max)
  • Output Current (High): 5.2mA
  • Output Current (Low): 5.2mA
  • Input Logic Level (Low): 0.5V to 1.8V
  • Input Logic Level (High): 1.5V to 4.2V
  • Propagation Delay: 15ns @ 6V, 50pF
