74HC1G32GW-Q100

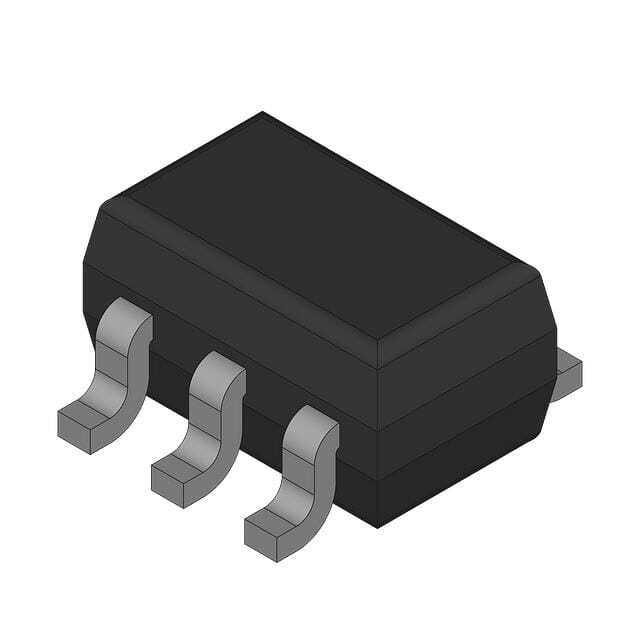

Same model may have multiple batches, images only for reference.

74HC1G32GW-Q100

Part No 74HC1G32GW-Q100
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE OR 1CH 2-INP 5TSSOP / OR Gate IC 1 Channel 5-TSSOP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100, 74HC
Package Bulk
Product Status Active
Logic Type OR Gate
Number of Circuits 1
Number of Inputs 2
Voltage - Supply 2V ~ 6V
Current - Quiescent (Max) 20 µA
Current - Output High, Low 2.6mA, 2.6mA
Input Logic Level - Low 0.5V ~ 1.8V
Input Logic Level - High 1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL 23ns @ 6V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 5-TSSOP
Package / Case 5-TSSOP, SC-70-5, SOT-353
Base Product Number 74HC1G32
Standard Package 1 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 857843-74HC1G32GW-Q100
Ultra Librarian 3D Model Ultra Librarian 74HC1G32GW-Q100 CAD Model

Description

The 857843-74HC1G32GW-Q100 is an OR gate integrated circuit from the automotive, AEC-Q100, 74HC series.

  • Application: Logic applications
  • Package: Bulk
  • Voltage Supply Range: 2V to 6V
  • Operating Temperature Range: -40°C to 125°C
  • Propagation Delay: 23ns @ 6V
  • Quiescent Current: 20µA
  • Inputs: Two
  • Current Output: 2.6mA
  • Product Status: Active
  • Package Quantity: 1 piece
  • Manufacturer: Nexperia USA Inc.
