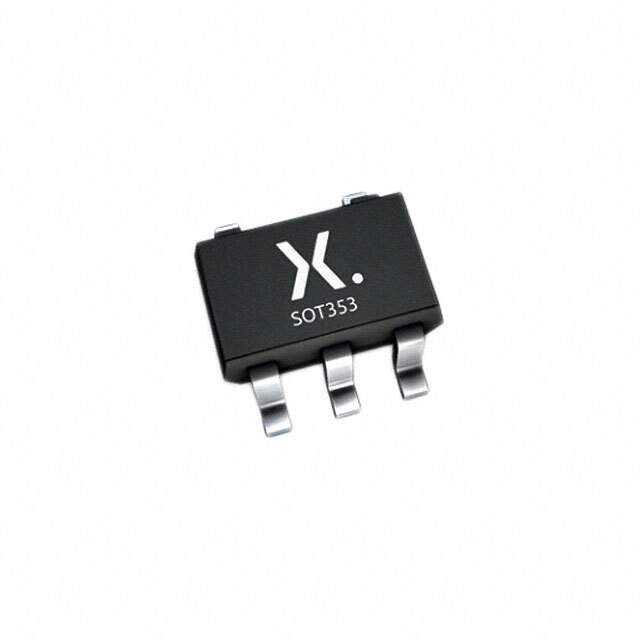

74LVC1G14GW-Q100,1 Real Image
Same model may have multiple batches, images only for reference.

74LVC1G14GW-Q100,1

Part No 74LVC1G14GW-Q100,1
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC INVERT SCHMITT TRIGGER 5TSSOP
Datasheet
74LVC1G14GW-Q100,1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Features Schmitt Trigger
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 4μA
Current - Output High, Low 32mA, 32mA
Logic Level - Low 0.46 V to 1.58 V
Logic Level - High 1.14 V to 2.79 V
Max Propagation Delay @ V, Max CL 5ns @ 5V, 50pF
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 5-TSSOP
Dimension 5-TSSOP, SC-70-5, SOT-353
Win Source Part Number 1009231-74LVC1G14GW-Q100,1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 74LVC1G14GW-Q100,1 CAD Model

Description

The Nexperia 74LVC1G14GW-Q100,1 is a Schmitt trigger inverter designed for use in various applications such as oscillators, pulse shapers, and waveform generators.

  • Circuits: 1
  • Voltage Range: 1.65 V to 5.5 V
  • Current Output: Up to 32mA
  • Maximum Propagation Delay: 5ns @ 5V and 50pF
  • Package: 5-TSSOP, SC-70-5, SOT-353
  • Temperature Range: -40°C to 125°C
