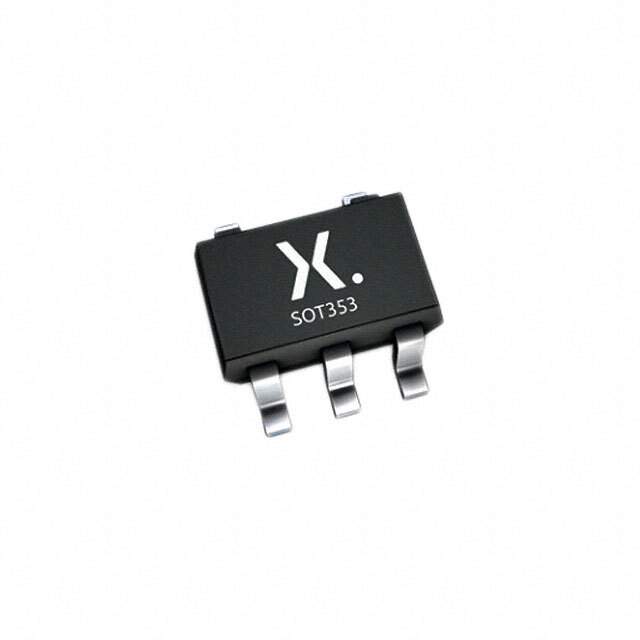

74LVC1G32GW-Q100H Real Image
Same model may have multiple batches, images only for reference.

74LVC1G32GW-Q100H

Part No 74LVC1G32GW-Q100H
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE OR 1CH 2-INP 5TSSOP  /  OR Gate IC 1 Channel 5-TSSOP
Datasheet
74LVC1G32GW-Q100H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74LVC
Package Tape & Reel
Logic Type OR Gate
Number of Circuits 1
Number of Inputs 2
Voltage - Supply 1.65V ~ 5.5V
Current - Quiescent (Max) 4 µA
Current - Output High, Low 32mA, 32mA
Logic Level - Low 0.7V ~ 0.8V
Logic Level - High 1.7V ~ 2V
Max Propagation Delay @ V, Max CL 4ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Supplier Device Package 5-TSSOP
Package / Case 5-TSSOP, SC-70-5, SOT-353
Base Product Number 74LVC1G32
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 74LVC1G32GW-Q100H-ND,1727-8424-2,935299291125,1727-8424-1,1727-8424-6
Standard Package 3,000
Win Source Part Number 1040570-74LVC1G32GW-Q100H
Ultra Librarian 3D Model Ultra Librarian 74LVC1G32GW-Q100H CAD Model

Description

The 74LVC1G32GW-Q100H is an integrated circuit that belongs to the logic gates and inverters category.

  • Manufacturer: Nexperia USA Inc.
  • Win Source Part Number: 1040570-74LVC1G32GW-Q100H
  • Series: 74LVC
  • Circuits: One
  • Package: Tape and reel
  • Standard Packages: 3,000
  • Mounting: SMD (SMT)
  • Logic Type: OR gate
  • Inputs: Two
  • Current Output High/Low: 32mA, 32mA
  • Maximum Propagation Delay: 4ns @ 5V, 50pF
  • Logic Level-Low: 0.7V ~ 0.8V
  • Logic Level-High: 1.7V ~ 2V
  • Voltage Supply: 1.65V ~ 5.5V
  • Package/Case: 5-TSSOP, SC-70-5, SOT-353
  • Supplier Device Package: 5-TSSOP
  • Temperature Range: -40°C ~ 125°C
