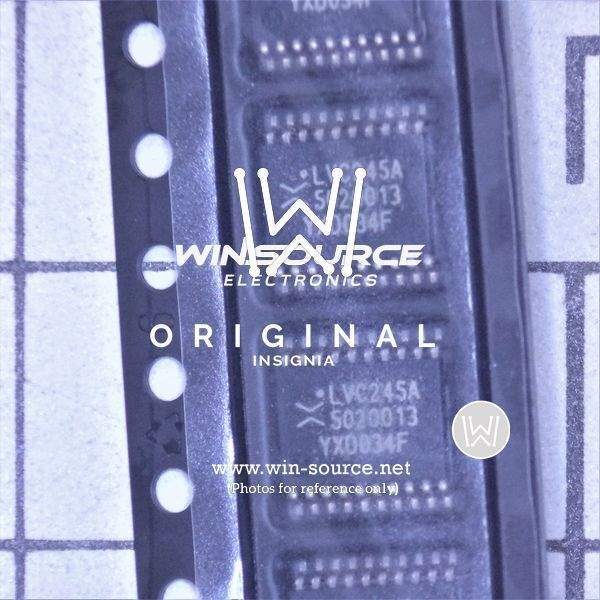

74LVC245APW,118 Real Image 74LVC245APW,118 real image
Same model may have multiple batches, images only for reference.
74LVC245APW,118 Real Image 74LVC245APW,118 real image
74LVC245APW,118 Real Image 74LVC245APW,118 real image
Same model may have multiple batches, images only for reference.

74LVC245APW,118

Part No 74LVC245APW,118
Manufacturer Nexperia USA Inc.
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description IC TXRX NON-INVERT 3.6V 20TSSOP / Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-TSSOP
Datasheet
74LVC245APW,118 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Buffers, Drivers, Receivers, Transceivers
Mfr Nexperia USA Inc.
Series 74LVC
Package Tape & Reel
Product Status Active
Logic Type Transceiver, Non-Inverting
Number of Elements 1
Number of Bits per Element 8
Output Type 3-State
Current - Output High, Low 24mA, 24mA
Voltage - Supply 1.2V ~ 3.6V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 20-TSSOP
Base Product Number 74LVC245
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 815963-74LVC245APW,118
Ultra Librarian 3D Model Ultra Librarian 74LVC245APW,118 CAD Model

Description

The 815963-74LVC245APW,118 is a transceiver integrated circuit (IC) from Nexperia USA Inc.. It is part of the 74LVC series and is designed for logic buffers, drivers, receivers, and transceivers.

  • Package Type: Tape & Reel
  • Package Quantity: 2,500 pieces
  • Output Type: Non-inverting, 3-state
  • Current Output High/Low: 24mA
  • Element: 1, 8 bits per element
  • Supply Voltage: 1.2V to 3.6V
  • Mounting Type: Surface Mount
  • Package: 20-TSSOP
  • Operating Temperature: -40°C to 125°C
  • MSL Level: 1 (unlimited)
  • REACH Regulations: Unaffected
  • HTSUS Code: 8542.39.0001
  • Base Product Number: 74LVC245
  • Product Status: Active
