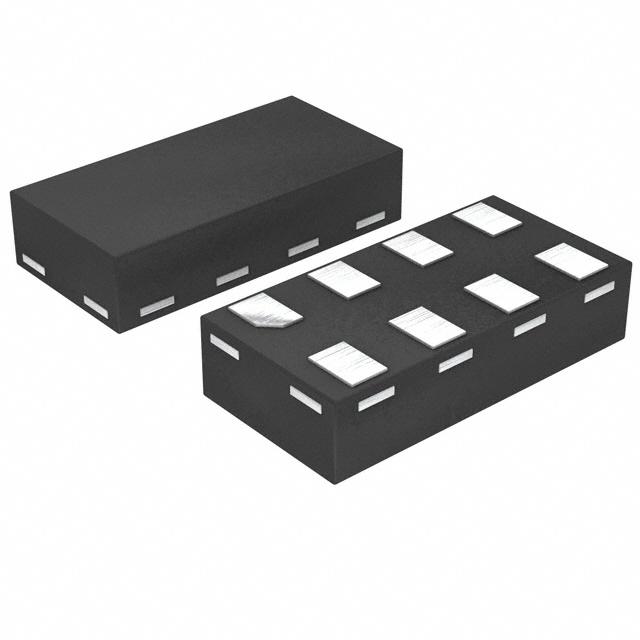

74LVC2G02GT,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74LVC2G02GT,115

Part No 74LVC2G02GT,115
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE NOR 2CH 2-INP 8-XSON
Datasheet
74LVC2G02GT,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Logic Type NOR Gate
Number of Circuits 2
Number of Inputs 2
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 4μA
Current - Output High, Low 32mA, 32mA
Logic Level - Low 0.7 V to 0.8 V
Logic Level - High 1.7 V to 2 V
Max Propagation Delay @ V, Max CL 4.3ns @ 5V, 50pF
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 8-XSON, SOT833-1 (1.95x1)
Dimension 8-XFDFN
Win Source Part Number 1009359-74LVC2G02GT,115
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 74LVC2G02GT,115 CAD Model

Description

The Nexperia USA Inc. 74LVC2G02GT,115 is a NOR gate with two inputs.

  • Current Output High: 32mA
  • Current Output Low: 32mA
  • Max Propagation Delay @ V, max CL: 4.3ns @ 5V, 50pF
  • Current Quiescent (max): 4μA
  • Logic Level-Low: 0.7 V to 0.8 V
  • Logic Level-High: 1.7 V to 2 V
  • Operating Temperature: -40°C to 125°C
  • Package: 8-XSON, SOT833-1 (1.95x1)
  • Dimension: 8-XFDFN
  • Supply Voltage: 1.65 V to 5.5 V
