Same model may have multiple batches, images only for reference.

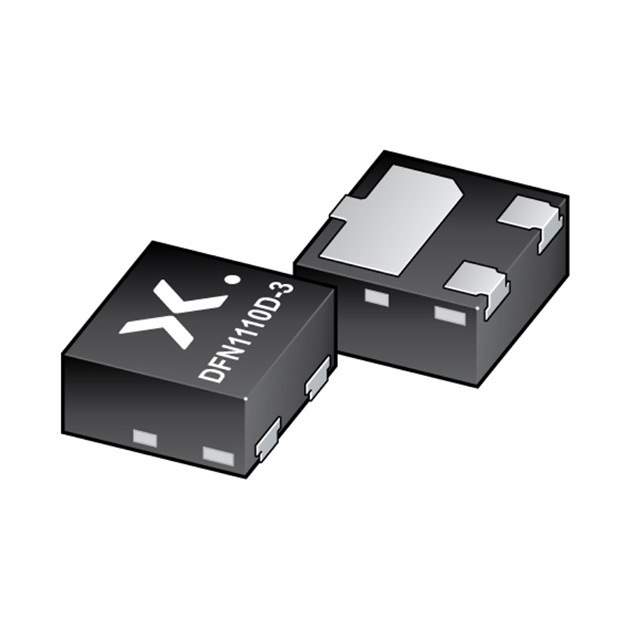

BC807-16QBZ Real Image
Same model may have multiple batches, images only for reference.

BC807-16QBZ

Part No BC807-16QBZ
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS 45V 0.5A DFN1110D-3 / Bipolar (BJT) Transistor 45 V 500 mA 80MHz 350 mW Surface Mount, Wettable Flank DFN1110D-3
Datasheet
BC807-16QBZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Current - Collector (Ic) (Max) 500 mA
Voltage - Collector Emitter Breakdown (Max) 45 V
Vce Saturation (Max) @ Ib, Ic 700mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 100mA, 1V
Power - Max 350 mW
Frequency - Transition 80MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount, Wettable Flank
Package / Case 3-XDFN Exposed Pad
Supplier Device Package DFN1110D-3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Other Names 934660962147,1727-BC807-16QBZDKR,1727-BC807-16QBZCT,1727-BC807-16QBZTR
Standard Package 5,000
Win Source Part Number 1164219-BC807-16QBZ
Ultra Librarian 3D Model Ultra Librarian BC807-16QBZ CAD Model

Description

The BC807-16QBZ from Nexperia USA Inc. is a bipolar transistor that is designed for use in a wide range of electronic applications.

  • Maximum Power Rating: 350 mW
  • Voltage Rating: 45 V
  • Maximum Collector Current: 500 mA
  • Vce Saturation @ Maximum Ib, Ic: 700mV @ 50mA, 500mA
  • Current Cutoff: 100nA (ICBO)
  • DC Current Gain (hFE): 100 @ 100mA, 1V
  • Frequency Transition: 80MHz
  • Package Type: Tape & Reel
  • Standard Package: 5,000
  • Temperature Range: 150°C (TJ)
  • Series: Automotive, AEC-Q101
  • Package/Case: 3-XDFN Exposed Pad
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • ECCN: EAR99
  • HTSUS: 8541.21.0095
