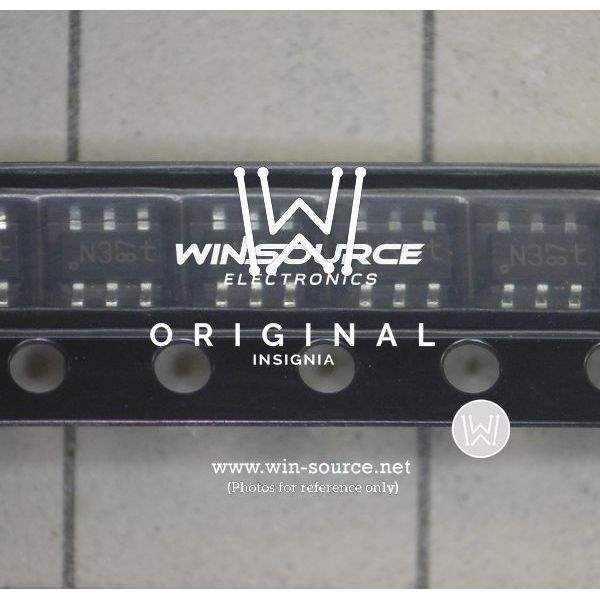

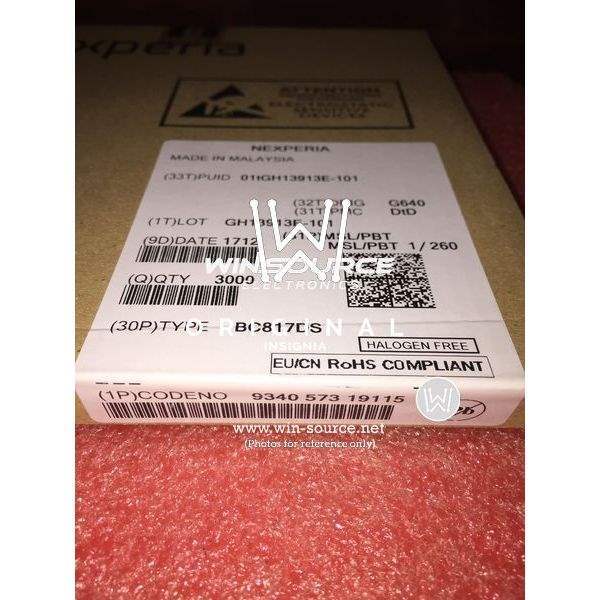

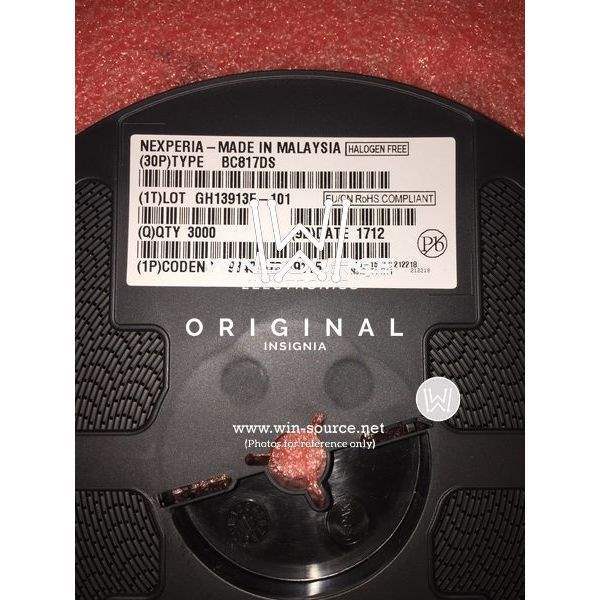

BC817DS,115 Nexperia USA Inc. BC817DS,115 real image BC817DS,115 label picture BC817DS,115 label picture 2
Same model may have multiple batches, images only for reference.
BC817DS,115 Nexperia USA Inc. BC817DS,115 real image BC817DS,115 label picture BC817DS,115 label picture 2
BC817DS,115 Nexperia USA Inc. BC817DS,115 real image BC817DS,115 label picture BC817DS,115 label picture 2
Same model may have multiple batches, images only for reference.

BC817DS,115

Part No BC817DS,115
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Arrays
Description Trans GP BJT NPN 45V 0.5A 600mW Automotive 6-Pin TSOP T/R / TRANS 2NPN 45V 0.5A 6TSOP
Datasheet
BC817DS,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity 2 NPN (Dual)
Maximum Current Collector 500mA
VCEO Maximum Collector-Emitter Breakdown Voltage 45V
Max Vce (sat) 700mV @ 50mA, 500mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 160 @ 100mA, 1V
Maximum Power Dissipation 600mW
Frequency - Transition 100MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-TSOP
Win Source Part Number 1022411-BC817DS,115
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name BC817DS
Introduction Date August 09, 2002
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian BC817DS,115 CAD Model

Description

The Nexperia BC817DS is a dual NPN transistor in a 6-TSOP package.

  • Maximum Collector-Emitter Breakdown Voltage: 45V
  • Maximum Collector Current: 500mA
  • Frequency Transition: 100MHz
  • Maximum Power Dissipation: 600mW
  • Collector Cut-off Current: 100nA
  • Typical Gain: 160 @ 100mA and 1V
  • Suitable For: Discrete semiconductor products
  • Popularity: High
  • Halogen-Free: Yes
  • ECCN Compliant: Yes
  • Estimated EOL Date: 2027
  • Supply and Demand: Limited
