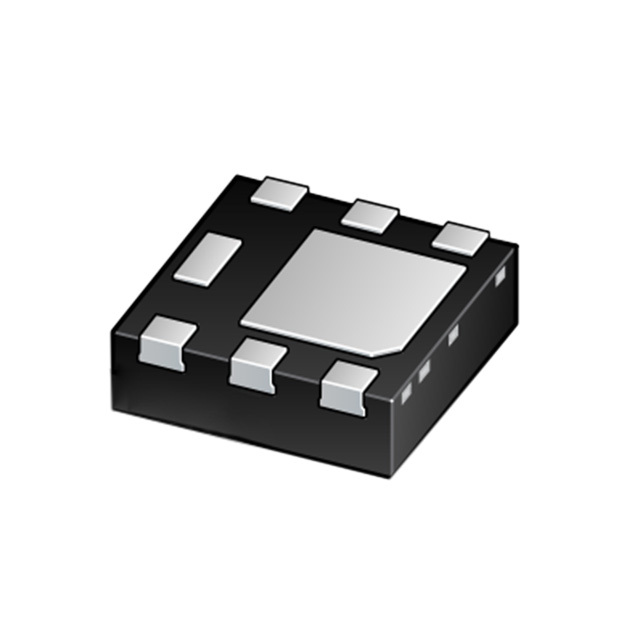

Same model may have multiple batches, images only for reference.
BUK4D16-20H Nexperia USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BUK4D16-20H

Part No BUK4D16-20H
Manufacturer Nexperia USA Inc.
Catalog Transistors – FETs, MOSFETs – Single
Description SMALL SIGNAL MOSFETS FOR AUTOMOT
Datasheet
BUK4D16-20H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 8.5A (Ta), 26A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 8V
Rds On (Max) @ Id, Vgs 14mOhm @ 9A, 8V
Vgs(th) (Max) @ Id 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 15 nC @ 4.5 V
Vgs (Max) ±12V
Input Capacitance (Ciss) (Max) @ Vds 931 pF @ 10 V
Power Dissipation (Max) 2W (Ta), 19W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Supplier Device Package DFN2020MD-6
Package / Case 6-UDFN Exposed Pad
Ultra Librarian 3D Model Ultra Librarian BUK4D16-20H CAD Model
