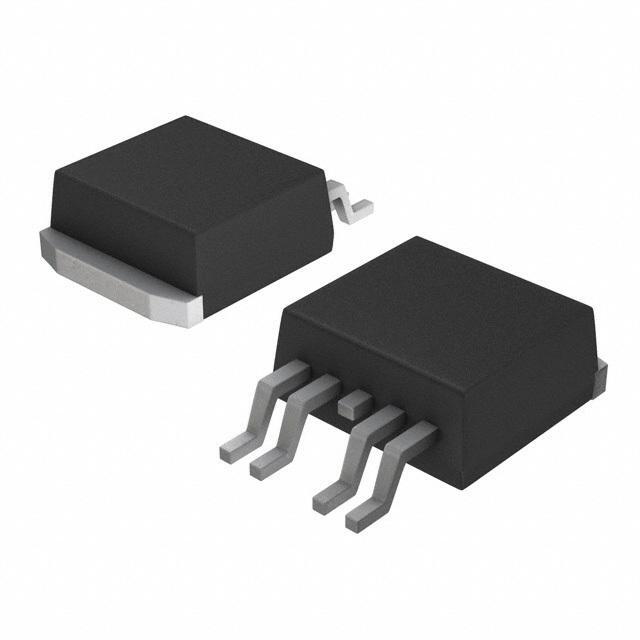

Same model may have multiple batches, images only for reference.
BUK7107-55ATE,118 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BUK7107-55ATE,118

Part No BUK7107-55ATE,118
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 55V 75A D2PAK / Trans MOSFET N-CH 55V 75A Automotive 5-Pin(4+Tab) D2PAK T/R
Datasheet
BUK7107-55ATE,118 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 55V
Current - Continuous Drain (Id) @ 25°C 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4V @ 1mA
Gate Charge (Qg) (Maximum) @ Vgs 116nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 4500pF @ 25V
Vgs (Maximum) ±20V
FET Feature Temperature Sensing Diode
Power Dissipation (Maximum) 272W (Tc)
Rds On (Maximum) @ Id, Vgs 7 mOhm @ 50A, 10V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting SMD
Manufacturer Package SOT-426
Package TO-263-5, D2Pak (4 Leads + Tab), TO-263BB
Win Source Part Number 770650-BUK7107-55ATE,118
Popularity Medium
Supply and Demand Status Balance
Quantity per package 800
Family Name BUK7107-55ATE
Introduction Date May 24, 1997
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BUK7107-55ATE,118 CAD Model

Description

The Nexperia USA Inc. BUK7107-55ATE,118 is a TO-263-5, D2Pak (4 Leads + Tab), TO-263BB package, N-channel MOSFET with a temperature sensing diode. It has a continuous drain current of 75A (Tc) and a maximum power dissipation of 272W (Tc).

  • Package: TO-263-5, D2Pak (4 Leads + Tab), TO-263BB
  • Continuous Drain Current: 75A (Tc)
  • Power Dissipation: 272W (Tc)
  • Drive Voltage: 10V
  • Drain-Source Voltage: 55V
  • Series: BUK7107-55ATE
