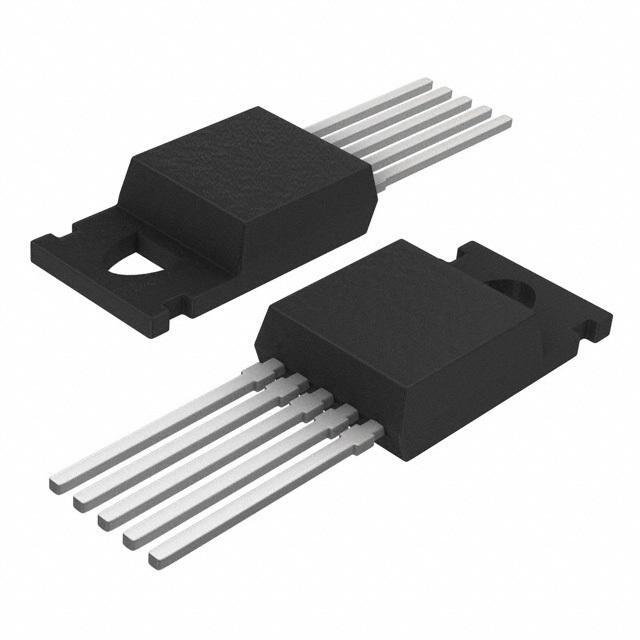

Same model may have multiple batches, images only for reference.

BUK7905-40AIE,127

Name: BUK7905-40AIE,127
Brand: Nexperia USA Inc.
SKU: 770660
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	BUK7905-40AIE,127
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 40V 75A TO220AB / Trans MOSFET N-CH 40V 155A Automotive 5-Pin(5+Tab) TO-220 Rail
Datasheet	BUK7905-40AIE,127 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101, TrenchMOS
Packaging	Tube
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	40V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Vgs(th) (Maximum) @ Id	4V @ 1mA
Gate Charge (Qg) (Maximum) @ Vgs	127nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	5000pF @ 25V
Vgs (Maximum)	±20V
FET Feature	Current Sensing
Power Dissipation (Maximum)	272W (Tc)
Rds On (Maximum) @ Id, Vgs	5 mOhm @ 50A, 10V
Operating Temperature Range	-55°C ~ 175°C (TJ)
Mounting Style	Through Hole
Manufacturer Package	TO-220-5
Package	TO-220-5
Win Source Part Number	770660-BUK7905-40AIE,127
Popularity	Medium
Supply and Demand Status	Limited
Family Name	BUK7905-40AIE
Introduction Date	May 24, 1997
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian BUK7905-40AIE,127 CAD Model

Alternative Products

Description

The Nexperia USA Inc. BUK7905-40AIE,127 is an N-channel MOSFET transistor that is designed for use in automotive electronic circuits.

Maximum Drain Source Voltage: 40V
Continuous Drain Current: 75A
Power Dissipation: 272W (Tc)
Rds On: 5 mOhm @ 50A, 10V
