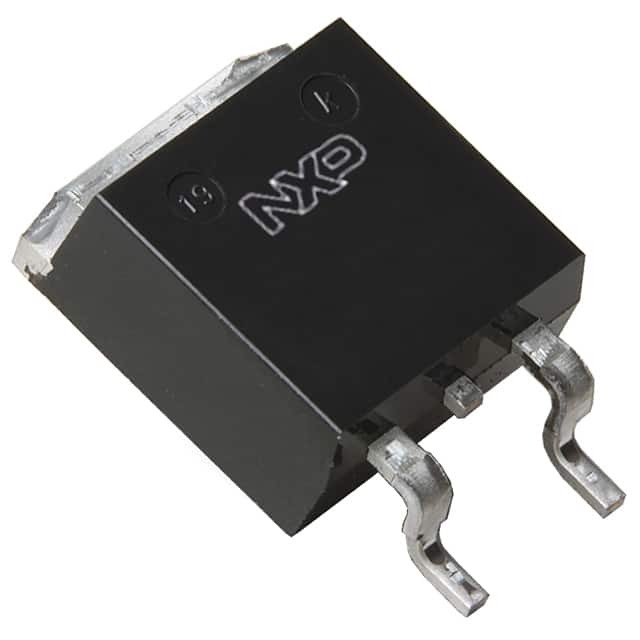

The BUK961R6-40E,118 is an N-Channel MOSFET transistor from Nexperia USA Inc.

• Series: Automotive, AEC-Q101, TrenchMOS™
• Drain to Source Voltage: 40 V
• Continuous Drain Current @ 25°C: 120A
• Rds On (Max) @ Id, Vgs: 1.4mOhm @ 25A, 10V
• Gate Charge (Qg) (Max) @ Vgs: 120 nC @ 5 V
• Input Capacitance (Ciss) (Max) @ Vds: 16400 pF @ 25 V
• Maximum Vgs: ±10V
• Operating Temperature Range: -55°C to 175°C
• Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
• Supplier Device Package: D2PAK
• Ideal for: use in applications such as power supplies, motor control, and lighting.
