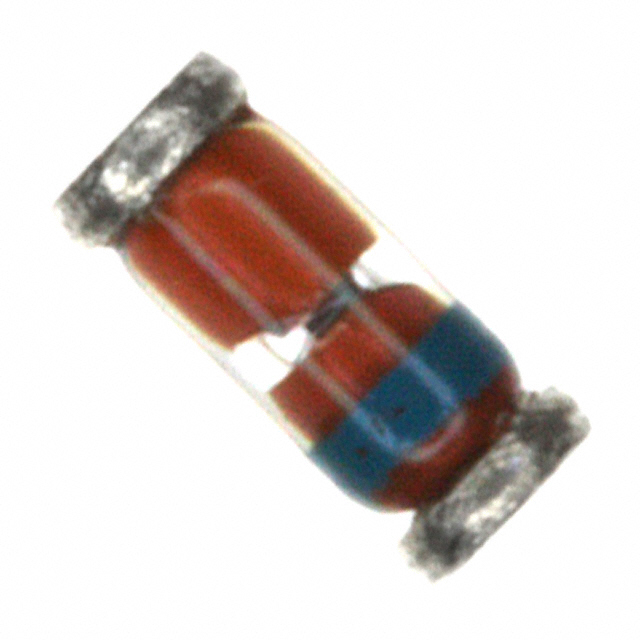

BZV55-C22,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BZV55-C22,115

Part No BZV55-C22,115
Manufacturer Nexperia USA Inc.
Catalog Diodes - Zener - Single
Description DIODE ZENER 22V 500MW SOD80C
Datasheet
BZV55-C22,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 22V
Tolerance ±5%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 55 Ohm
Current - Reverse Leakage @ Vr 50nA @ 15.4V
Voltage - Forward (Vf) (Max) @ If 900mV @ 10mA
Temperature Range - Operating -65°C to 200°C
Mounting SMD (SMT)
Case / Package SOD-80C
Win Source Part Number 1026193-BZV55-C22,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BZV55-C22,115 CAD Model

Description

The BZV55-C22,115 is a zener diode from Nexperia USA Inc.

  • Mounting Type: SMD (SMT)
  • Package: SOD-80C
  • Tolerance: ±5%
  • Voltage Forward: 900mV @ 10mA
  • Reverse Leakage Current @ Vr: 50nA @ 15.4V
  • Zener Voltage: 22V
  • Maximum Impedance: 55 Ohm
  • Operating Temperature Range: -65°C to 200°C
  • Maximum Power Dissipation: 500mW
  • Popularity: Medium
  • Supply and Demand: Sufficient
  • Market: Open market
