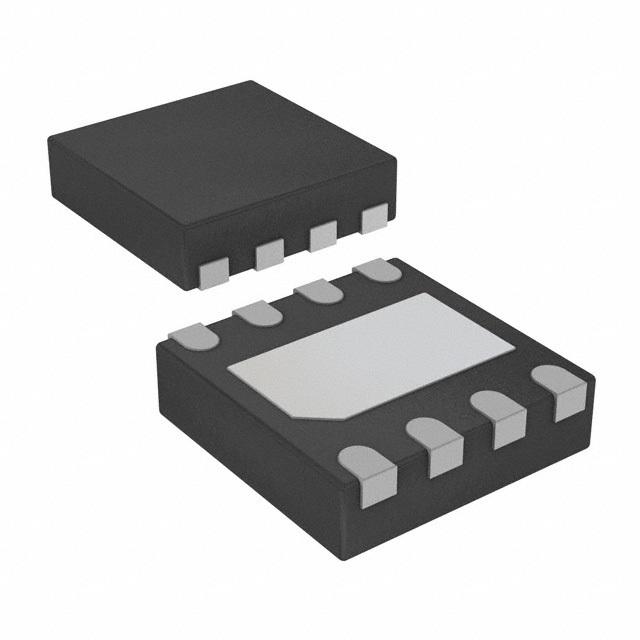

Same model may have multiple batches, images only for reference.
IP4251CZ8-4-TTL,13 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4251CZ8-4-TTL,13

Part No IP4251CZ8-4-TTL,13
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/10PF SMD
Datasheet
IP4251CZ8-4-TTL,13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 4
Attenuation Value 16dB @ 800MHz to 3GHz
Resistance - Channel (Ohms) 100
Values R = 100 Ohms, C = 10pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications LAN, WAN
Mounting SMD (SMT)
Dimension 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height 0.022" (0.55mm)
Win Source Part Number 1045655-IP4251CZ8-4-TTL,13
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IP4251CZ8-4-TTL,13 CAD Model

Description

The Nexperia USA Inc. IP4251CZ8-4-TTL low pass filter is a 2nd order RC (Pi) filter with 4 channels.

  • Type: Low Pass Filter
  • Filter Type: 2nd Order RC (Pi)
  • Number of Channels: 4
  • Attenuation @ 800MHz to 3GHz: 16dB
  • Resistance: 100 Ohms
  • Feature: ESD Protected
  • Height: 0.022" (0.55mm)
  • Applications: LAN and WAN
  • Mounting Type: SMD (SMT)
  • Total Capacitance: 10pF
  • Center/Cutoff Frequency: Not Specified
  • Product Status: Obsolete (EOL)
  • Popularity: Medium
