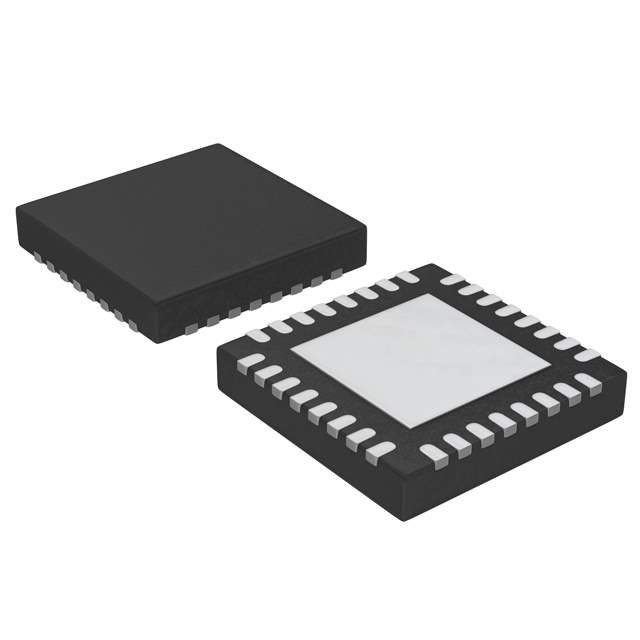

The IP4786CZ32Y is a common mode filter designed for high-speed differential signal interfaces, manufactured by Nexperia. It is designed to suppress common mode noise while passing differential signals with minimal distortion. This filter is commonly used to protect sensitive electronic circuits from electrostatic discharge (ESD) and other transient voltage events.

Applications

• USB 2.0 data lines
• HDMI interfaces
• DisplayPort interfaces
• Mobile devices
• Consumer electronics

Features

• Integrated common mode filter and ESD protection
• Low clamping voltage
• High surge capability
• Small form factor package
• High differential mode bandwidth

Benefits

• Effective suppression of common mode noise, improving signal integrity.
• Robust ESD protection safeguards sensitive components from damage.
• Minimized signal distortion due to high differential mode bandwidth.
• Space-saving design allows for easy integration into compact devices.
• Enhanced reliability of electronic systems in harsh environments.

Additional Details

The IP4786CZ32Y comes in a small DFN package. The device provides protection against electrostatic discharge (ESD) up to ±8 kV contact discharge according to IEC 61000-4-2. The filter offers excellent signal integrity with minimal impact on the differential signal. Its low clamping voltage ensures effective protection for downstream components. It is compliant with RoHS standards.
