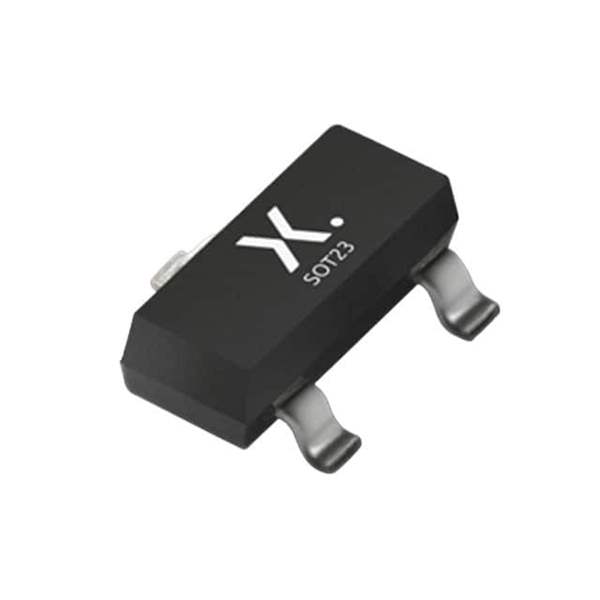

MMBZ27VCL,215

Name: MMBZ27VCL,215
Brand: Nexperia USA Inc.
SKU: 1024791
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MMBZ27VCL,215
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 22VWM 38VC TO236AB / 38V Clamp 1A Ipp Tvs Diode Surface Mount TO-236AB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Type	Zener
Unidirectional Channels	2
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V (Max)
Voltage - Breakdown (Min)	25.65V
Voltage - Clamping (Max) @ Ipp	38V
Current - Peak Pulse (10/1000µs)	1A
Power - Peak Pulse	40W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	48pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TA)
Mounting	SMD (SMT)
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	TO-236AB
Base Product Number	MMBZ27
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	568-11223-2-ND,568-11223-1-ND,568-11223-2,MMBZ27VCL,215-ND,1727-1685-6,934061813215,568-11223-1,1727-1685-1,568-11223-6,1727-1685-2,568-11223-6-ND
Standard Package	3,000
Win Source Part Number	1024791-MMBZ27VCL,215
Ultra Librarian 3D Model	Ultra Librarian MMBZ27VCL,215 CAD Model

Alternative Products

Description

The MMBZ27VCL,215 is a Zener type TVS diode from Nexperia USA Inc.

Package: Tape & Reel
Standard Package: 3,000
Voltage - Reverse Standoff (Typ): 22V (Max)
Voltage - Breakdown (Min): 25.65V
Voltage - Clamping (Max) @ Ipp: 38V
Power - Peak Pulse: 40W
Capacitance @ Frequency: 48pF @ 1MHz
Current - Peak Pulse (10/1000µs): 1A
Operating Temperature: -55°C ~ 150°C (TA)
Mounting Type: Surface Mount (SMT)
Unidirectional Channels: 2
Bidirectional Channels: 1
Package / Case: TO-236-3, SC-59, SOT-23-3
Supplier Device Package: TO-236AB
ECCN: EAR99
REACH: Unaffected
HTSUS: 8541.10.0080
