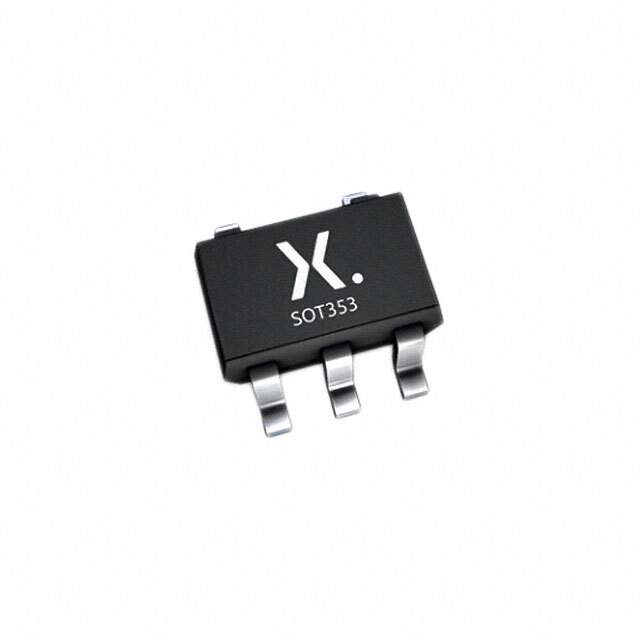

74HCT1G14GW-Q100H Real Image
Same model may have multiple batches, images only for reference.

74HCT1G14GW-Q100H

Part No 74HCT1G14GW-Q100H
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC INVERT SCHMITT 1CH 1IN 5TSSOP  /  Inverter IC 1 Channel Schmitt Trigger 5-TSSOP
Datasheet
74HCT1G14GW-Q100H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100, 74HCT
Package Tape & Reel
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Features Schmitt Trigger
Voltage - Supply 4.5V ~ 5.5V
Current - Quiescent (Max) 20 µA
Current - Output High, Low 2mA, 2mA
Logic Level - Low 0.5V ~ 0.6V
Logic Level - High 1.9V ~ 2.1V
Max Propagation Delay @ V, Max CL 51ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Supplier Device Package 5-TSSOP
Package / Case 5-TSSOP, SC-70-5, SOT-353
Base Product Number 74HCT1G14
Other Names 935299228125,74HCT1G14GW-Q100H,1727-8406-6,1727-8406-2,1727-8406-1
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1258192-74HCT1G14GW-Q100H
Ultra Librarian 3D Model Ultra Librarian 74HCT1G14GW-Q100H CAD Model

Description

The Nexperia USA Inc. 74HCT1G14GW-Q100H is a high-performance logic gate used in various electronic devices.

  • Series: Automotive, AEC-Q100, 74HCT
  • Feature: Schmitt Trigger
  • Package: Tape & Reel
  • Standard Package: 3,000
  • Circuits: Single
  • Mounting: SMD (SMT)
  • Logic Type: Inverter
  • Current Output High: 2mA
  • Current Output Low: 2mA
  • Propagation Delay: 51ns @ 5V, 50pF
  • Quiescent Current: 20 µA
  • Voltage Supply: 4.5V to 5.5V
  • Temperature Range: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
