The Nexperia USA Inc. 1324760-PMZ130UNEYL is a MOSFET (Metal Oxide) N-Channel transistor.

• Drain to Source Voltage (Vdss): 20 V
• Current - Continuous Drain (Id) @ 25°C: 1.8A
• Rds On (Max) @ Id, Vgs: 150mOhm @ 1.8A, 4.5V
• Vgs(th) (Max) @ Id: 950mV @ 250μA
• Power Dissipation (Max): 350mW, 6.25W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 1.6 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds: 93 pF @ 10 V
• Voltage range for Vgs (Max): ±8V
• Temperature range - operating: -55°C ~ 150°C (TJ)
• ROHS3 compliant: Yes

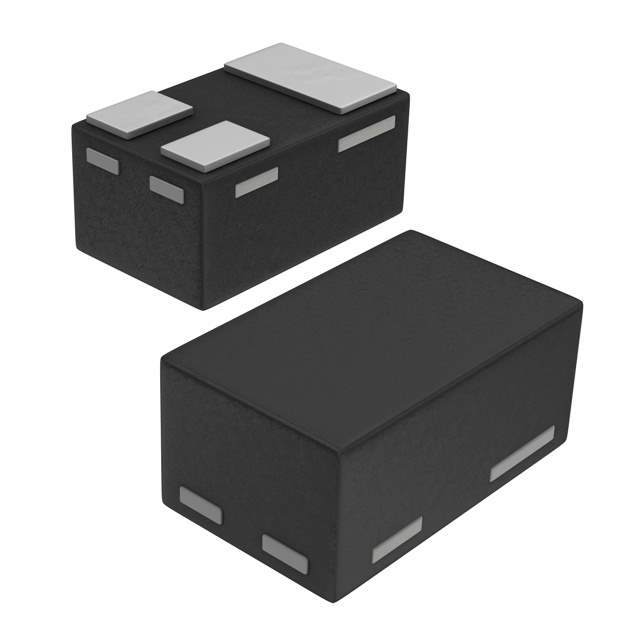

• Supplied in: a SOT-883 package
