The PMZ600UNEYL is a N-channel MOSFET transistor designed for use in Discrete Semiconductor Products such as Transistors - FETs, MOSFETs - Single.

• Drain to Source Voltage (Vdss): 20 V
• Current - Continuous Drain (Id) @ 25°C: 600mA
• Rds On (Max) @ Id, Vgs: 620mOhm @ 600mA, 4.5V
• Vgs(th) (Max) @ Id: 950mV @ 250μA
• Power Dissipation (Max): 360mW, 2.7W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 0.7 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds: 21.3 pF @ 10 V
• Vgs (Max): ±8V

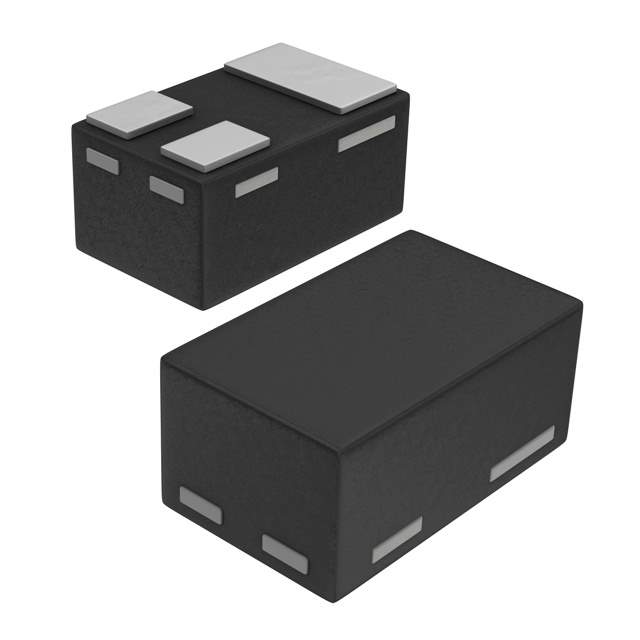

• Package: SC-101, SOT-883 package
• Mounting: Surface Mount
