The PXP8R3-20QXJ is a P-channel MOSFET transistor from Nexperia USA Inc. with a drain to source voltage of 20V and a power dissipation of 1.8W (Ta), 50W (Tc).

• Channel Type: P-Channel
• Drain to Source Voltage: 20V
• Power Dissipation: 1.8W (Ta), 50W (Tc)

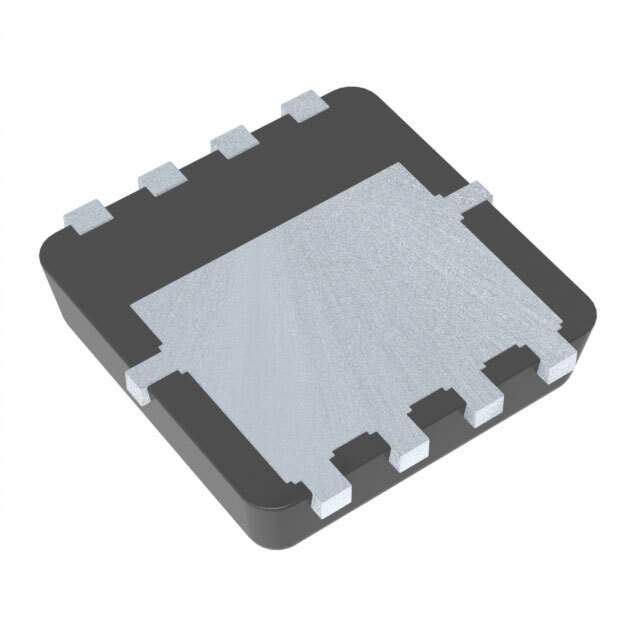

• Package: 8-PowerVDFN
• Mounting Type: Surface Mount
• Supplier Device Package: MLPAK33
• Vgs (Max): ±12V
• Temperature Range: -55°C ~ 150°C (TJ)
• Application: Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
• Drive Voltage: 2.5V, 4.5V
• Current - Continuous Drain (Id) @ 25°C: 12.4A (Ta), 65.1A (Tc)
• Rds On (Max) @ Id, Vgs: 8.3mOhm @ 12.3A, 4.5V
• Vgs(th) (Max) @ Id: 1.25V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs: 91.8 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds: 6200 pF @ 10 V
