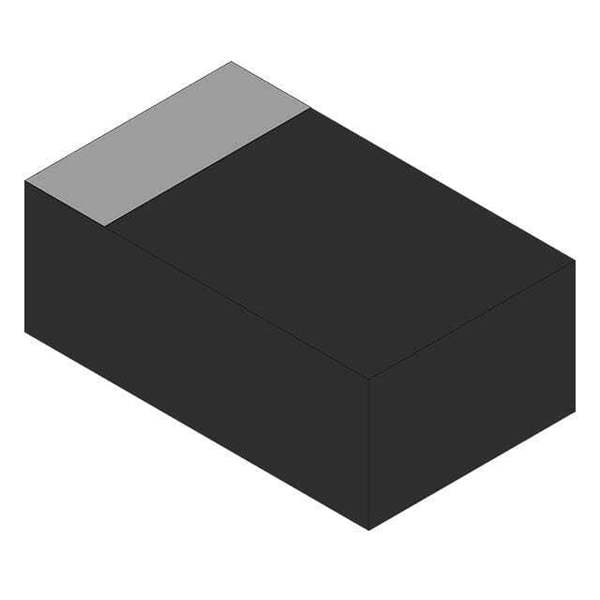

PESD12VSA-LYL Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD12VSA-LYL

Part No PESD12VSA-LYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description PESD12VSA-L - ESD PROTECTION DIO / Clamp Ipp Tvs Diode
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Nexperia USA Inc.
Series *
Package Bulk
Product Status Active
Base Product Number PESD12
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) Vendor Undefined
REACH Status REACH Unaffected
Win Source Part Number 1084563-PESD12VSA-LYL
Ultra Librarian 3D Model Ultra Librarian PESD12VSA-LYL CAD Model

Description

The 1084563-PESD12VSA-LYL is a transient voltage suppressor (TVS) diode used in circuit protection applications.

  • Packaging: bulk
  • Standard Package: 1 piece
  • Status: active product
  • REACH: unaffected by REACH regulations
  • Manufacturer: Nexperia USA Inc.
  • Base Product Number: PESD12
  • Moisture Sensitivity Level (MSL): vendor undefined
