Same model may have multiple batches, images only for reference.

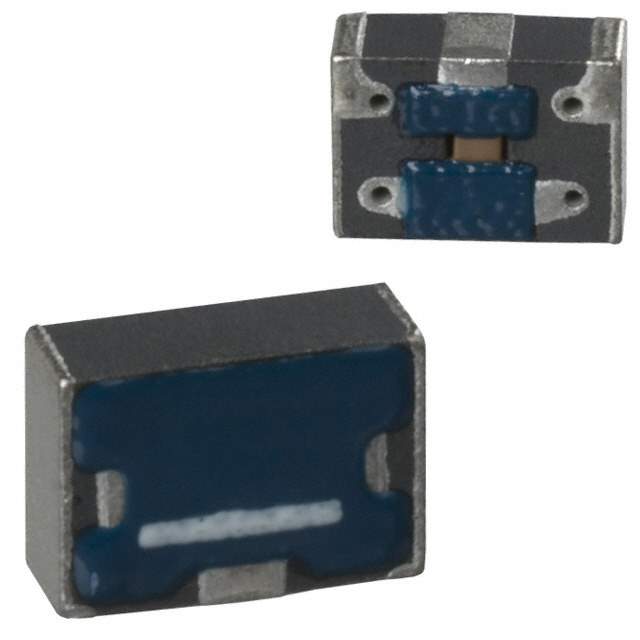

ACH4518-333-TD01 Real Image
Same model may have multiple batches, images only for reference.

ACH4518-333-TD01

Part No ACH4518-333-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH4518-333-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 6MHz to 60MHz
Resistance - Channel (Ohms) 0.06
Current 2A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height 0.138" (3.50mm)
Win Source Part Number 108932-ACH4518-333-TD01
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian ACH4518-333-TD01 CAD Model

Description

Product Overview

Optimized for high-performance environments, the ACH4518-333-TD01 boasts outstanding capability in noise reduction. It is a perfect fit for complex circuits requiring precision handling of interference.

Applications

  • High-speed data interfaces
  • Security systems
  • Wearable technology

Features and Benefits

  • Precision Design: Ensures minimal interference impact.
  • Temperature Resistant: Performs well under thermal stress.
  • Enhanced Compatibility: Easily integrates into various electronic assemblies.

Additional Details

This component complies with global environmental and safety regulations, offering peace of mind and practicality for modern applications.
