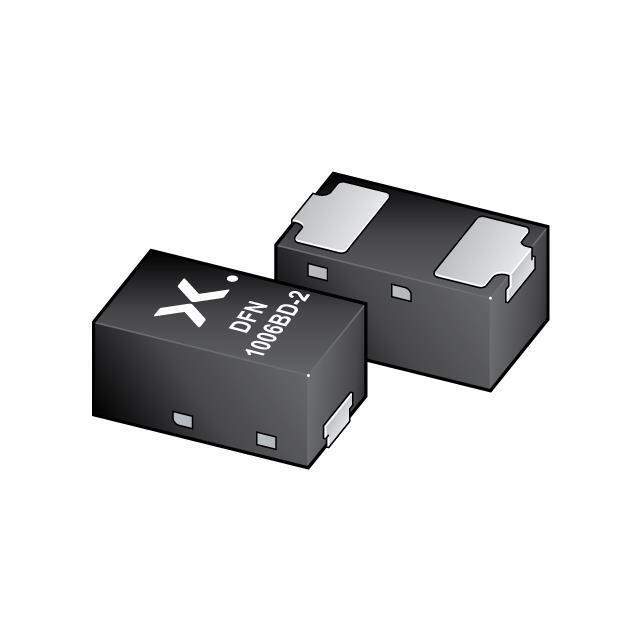

PESD24VS1ULSYL Real Image
Same model may have multiple batches, images only for reference.

PESD24VS1ULSYL

Part No PESD24VS1ULSYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 60VC DFN1006BD-2 / 60V Clamp 4.5A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006BD-2
Datasheet
PESD24VS1ULSYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 26.5V
Voltage - Clamping (Max) @ Ipp 60V
Current - Peak Pulse (10/1000µs) 4.5A (8/20µs)
Power Line Protection No
Applications Automotive, Telecom
Capacitance @ Frequency 23pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case SOD-882
Supplier Device Package DFN1006BD-2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1727-PESD24VS1ULSYLDKR,1727-PESD24VS1ULSYLCT,1727-PESD24VS1ULSYLTR,934661718315
Standard Package 10,000
Win Source Part Number 1178412-PESD24VS1ULSYL
Ultra Librarian 3D Model Ultra Librarian PESD24VS1ULSYL CAD Model

Description

The PESD24VS1ULSYL is a Zener type TVS diode manufactured by Nexperia USA Inc.

  • Type: Zener TVS Diode
  • Series: Automotive
  • AEC-Q101: Certified
  • Standard Package: 10,000
  • Channels: 1 Unidirectional
  • Voltage Reverse Standoff (Typ): 24V (Max)
  • Voltage Breakdown (Min): 26.5V
  • Voltage Clamping (Max) @ Ipp: 60V
  • Package/Case: SOD-882
