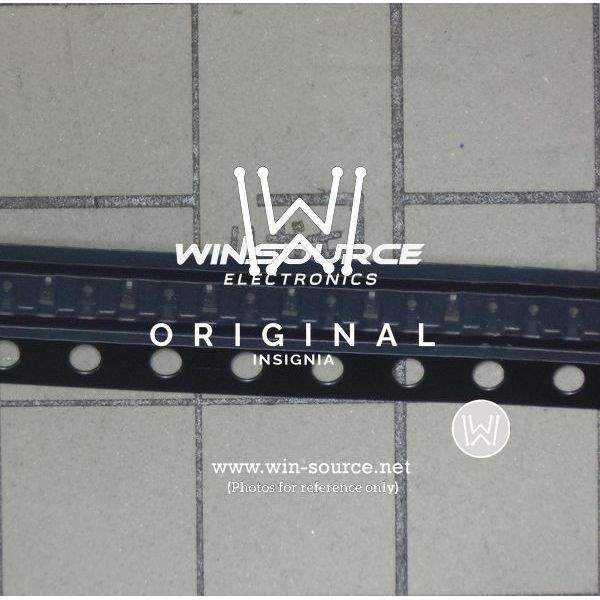

PESD5V0S1BB,115 Nexperia USA Inc. PESD5V0S1BB,115 label picture PESD5V0S1BB,115 label picture 2 PESD5V0S1BB,115 real image
Same model may have multiple batches, images only for reference.
PESD5V0S1BB,115 Nexperia USA Inc. PESD5V0S1BB,115 label picture PESD5V0S1BB,115 label picture 2 PESD5V0S1BB,115 real image
PESD5V0S1BB,115 Nexperia USA Inc. PESD5V0S1BB,115 label picture PESD5V0S1BB,115 label picture 2 PESD5V0S1BB,115 real image
Same model may have multiple batches, images only for reference.

PESD5V0S1BB,115

Part No PESD5V0S1BB,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Bi-Dir 5V Automotive 2-Pin SOD-523 T/R / TVS DIODE 5VWM 14VC SOD523
Datasheet
PESD5V0S1BB,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 5.5V
Max Clamping Voltage 14V
Peak Pulse Current(Ippm) 12A (8/20μs)
Power Dissipation - Pd 130W
Applications General Purpose
Capacitance @ Frequency 35pF @ 1MHz
Temperature Range - Operating -65°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 1087592-PESD5V0S1BB,115
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PESD5V0S1BB
Introduction Date March 04, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian PESD5V0S1BB,115 CAD Model

Description

The supply and demand status of the product is balanced.

  • Stand-off Voltage: 5V
  • Minimum Breakdown Voltage: 5.5V
  • Maximum Clamping Voltage: 14V
  • Peak Pulse Current: 12A
  • Power Dissipation: 130W
  • Halogen-Free: Yes
  • RoHS Compliant: Yes
  • Manufacturer: Nexperia
