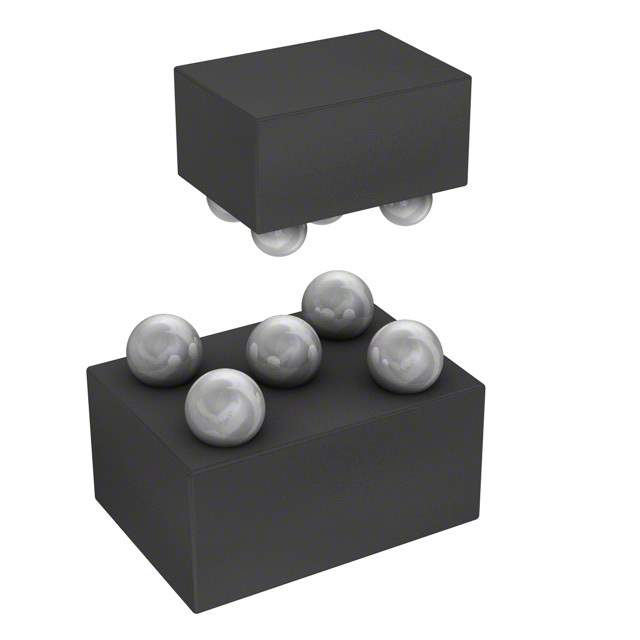

PMCM4401UPEZ Real Image
Same model may have multiple batches, images only for reference.

PMCM4401UPEZ

Part No PMCM4401UPEZ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 4A 4WLCSP  /  P-Channel 20 V 4A (Ta) 400mW (Ta), 12.5W (Tc) Surface Mount 4-WLCSP (0.78x0.78)
Datasheet
PMCM4401UPEZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Nexperia USA Inc.
Package Tape & Reel
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Rds On (Max) @ Id, Vgs 95mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs 10 nC @ 4.5 V
Vgs (Max) ±8V
Input Capacitance (Ciss) (Max) @ Vds 420 pF @ 10 V
Power Dissipation (Max) 400mW (Ta), 12.5W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package 4-WLCSP (0.78x0.78)
Package / Case 4-XFBGA, WLCSP
Base Product Number PMCM4401
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 568-13302-1,568-13302-2,NEXNEXPMCM4401UPEZ,568-13302-6,2156-PMCM4401UPEZ-NEX,934070326084
Standard Package 9,000
Win Source Part Number 1085653-PMCM4401UPEZ
Ultra Librarian 3D Model Ultra Librarian PMCM4401UPEZ CAD Model

Description

The Nexperia USA Inc. PMCM4401UPEZ is a P-channel MOSFET transistor designed for use in discrete semiconductor products.

  • Channel Type: P-Channel MOSFET
  • Package: 4-XFBGA, WLCSP
  • Drain to Source Voltage: 20V
  • Continuous Drain Current: 4A @ 25°C
  • Rds On (Max): 95mOhm @ 3A and 4.5Vgs
  • Gate Charge: 10nC @ 4.5Vgs
  • Input Capacitance: 420pF @ 10Vds
  • Temperature Range: -55°C to 150°C (TJ)
  • REACH: Unaffected
  • Manufacturer: Nexperia USA Inc.
