Same model may have multiple batches, images only for reference.

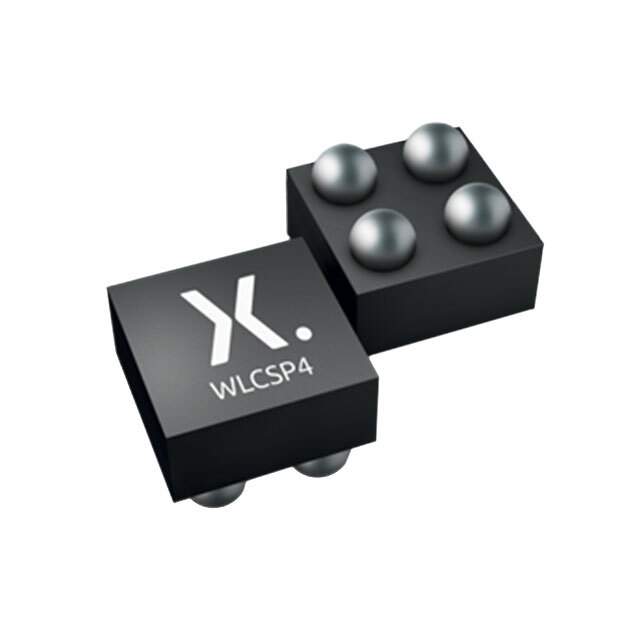

PMCM4401VNEAZ Real Image
Same model may have multiple batches, images only for reference.

PMCM4401VNEAZ

Part No PMCM4401VNEAZ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 12V 4.7A 4WLCSP
Datasheet
PMCM4401VNEAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 26 Weeks
Features N-Channel 12 V 4.7A (Ta) 400mW (Ta), 12.5W (Tc) Surface Mount 4-WLCSP (0.78x0.78)
Manufacturer Nexperia USA Inc.
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 4-XFBGA, WLCSP
Case / Package 4-WLCSP (0.78x0.78)
Family Name PMCM4401
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 1727-2686-2, 568-13205-1, 934068854084, 1727-2686-1, 568-13205-6-ND, 1727-2686-6, 568-13205-1-ND, 568-13205-2, 568-13205-2-ND, 568-13205-6, PMCM4401VNEAZ-ND
Quantity per package 9000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 890054-PMCM4401VNEAZ
Ultra Librarian 3D Model Ultra Librarian PMCM4401VNEAZ CAD Model

Description

The Nexperia USA Inc. PMCM4401VNEAZ is an N-channel 12 V 4.7A (Ta) 400mW (Ta), 12.5W (Tc) surface mount 4-WLCSP (0.78x0.78) electronic component manufactured by Nexperia USA Inc..

  • Supply and Demand Status: Limited
  • Package: Reel - TR
  • Mounting Type: Surface Mount
  • Package / Case: 4-XFBGA, WLCSP
  • Production Lead Time: 26 Weeks (Estimated)
  • Product Category: Discrete Semiconductor Product
  • ECCN: EAR99
  • Quantity Per Package: 9000
  • MSL Level: 1 (Unlimited)
  • Other Part Numbers: 1727-2686-2, 568-13205-1, 934068854084, 1727-2686-1, 568-13205-6-ND, 1727-2686-6, 568-13205-1-ND, 568-13205-2, 568-13205-2-ND, 568-13205-6, PMCM4401VNEAZ-ND
