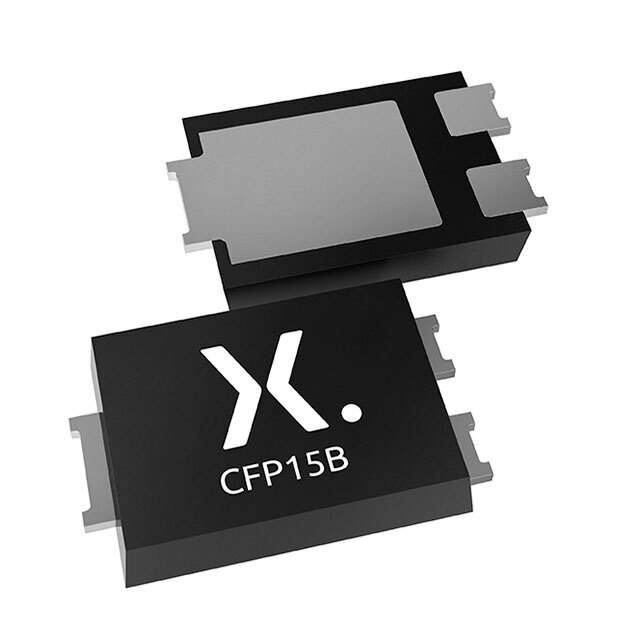

PMEG100V100ELPDZ Real Image
Same model may have multiple batches, images only for reference.

PMEG100V100ELPDZ

Part No PMEG100V100ELPDZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Datasheet
PMEG100V100ELPDZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 14 ns
Current - Reverse Leakage @ Vr 1 µA @ 100 V
Capacitance @ Vr, F 135pF @ 10V, 1MHz
Mounting SMD (SMT)
Package / Case TO-277, 3-PowerDFN
Supplier Device Package CFP15
Operating Temperature - Junction 175°C (Max)
Base Product Number PMEG100
Other Names 934069519146,1727-7642-1,1727-7642-2,PMEG100V100ELPDZ,1727-7642-6
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282248-PMEG100V100ELPDZ
Ultra Librarian 3D Model Ultra Librarian PMEG100V100ELPDZ CAD Model

Description

The PMEG100V100ELPDZ is a Schottky Diode designed for use in Discrete Semiconductor Products such as Diodes - Rectifiers - Single.

  • Voltage - DC Reverse (Vr) (Max): 100 V
  • Current - Average Rectified (Io): 10A
  • Voltage - Forward (Vf) (Max) @ If: 850 mV @ 10 A
  • Reverse Recovery Time (trr): 14 ns
  • Current - Reverse Leakage @ Vr: 1 μA @ 100 V
  • Capacitance @ Vr, F: 135pF @ 10V, 1MHz
  • Operating Temperature: 175°C (Max)
  • Package: TO-277, 3-PowerDFN
  • Mounting: SMD (SMT)
