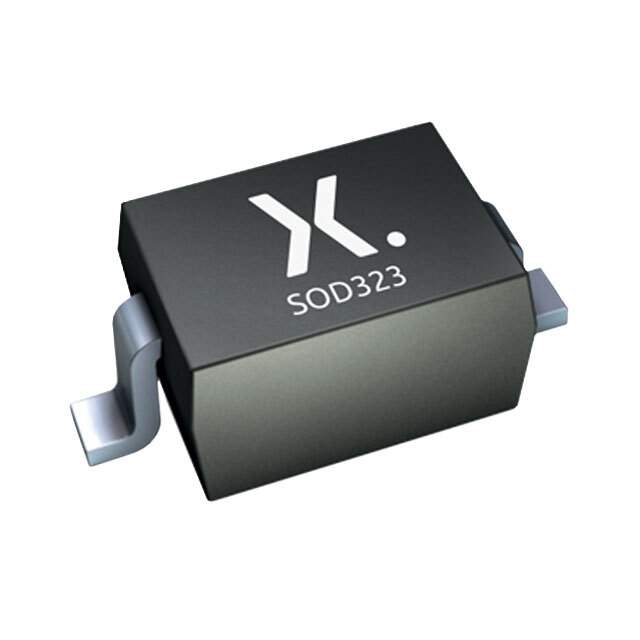

PMEG2005AEA/DG,115 Real Image
Same model may have multiple batches, images only for reference.

PMEG2005AEA/DG,115

Part No PMEG2005AEA/DG,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 500MA SOD323 / Diode Schottky 20 V 500mA (DC) Surface Mount SOD-323
Datasheet
PMEG2005AEA/DG,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Package Tape & Reel (TR)
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 500mA (DC)
Voltage - Forward (Vf) (Max) @ If 390 mV @ 500 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 20 V
Capacitance @ Vr, F 80pF @ 1V, 1MHz
Mounting SMD (SMT)
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Operating Temperature - Junction 140°C (Max)
Base Product Number PMEG2005
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 2156-PMEG2005AEA/DG115,934061743115,PMEG2005AEA/DG115,NEXNEXPMEG2005AEA/DG,115
Standard Package 3,000
Win Source Part Number 1141006-PMEG2005AEA/DG,115
Ultra Librarian 3D Model Ultra Librarian PMEG2005AEA/DG,115 CAD Model

Description

The PMEG2005AEA/DG,115 is a Schottky diode manufactured by Nexperia USA Inc.

  • Series: PMEG2005
  • Application: Fast Recovery Circuits
  • Maximum Reverse Voltage: 20 V
  • Average Rectified Current: 500mA (DC)
  • Voltage Forward @ Maximum Current: 390 mV @ 500 mA
  • Reverse Leakage Current @ Maximum Reverse Voltage: 200 µA @ 20 V
  • Capacitance @ 1MHz: 80pF @ 1V
  • Package: SC-76, SOD-323
  • Mounting Type: Surface Mountable
  • Operating Temperature Range: Up to 140°C (max)
  • Status: Obsolete
