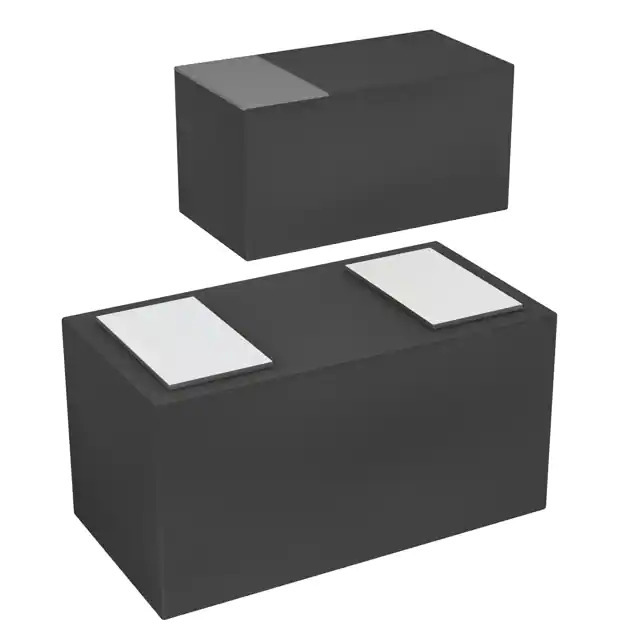

PMEG3005AESFYL

Name: PMEG3005AESFYL
Brand: Nexperia USA Inc.
SKU: 1367254
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PMEG3005AESFYL
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTT 30V 500MA DSN0603-2
Datasheet	PMEG3005AESFYL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Nexperia USA Inc.
Series	-
Package	Tape & Reel
Product Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	30 V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	630 mV @ 500 mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	1.37 ns
Current - Reverse Leakage @ Vr	80 µA @ 30 V
Capacitance @ Vr, F	22pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	DSN0603-2
Operating Temperature - Junction	150°C (Max)
Base Product Number	PMEG3005
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0070
Win Source Part Number	1367254-PMEG3005AESFYL
Ultra Librarian 3D Model	Ultra Librarian PMEG3005AESFYL CAD Model

Alternative Products

Description

The PMEG3005AESFYL is a Schottky diode from Nexperia USA Inc.

Manufacturer: Nexperia USA Inc.
Application: Rectification
Package / Case: 0201 (0603 Metric)
Mounting Type: Surface Mount
Maximum Reverse Voltage (Vr): 30 V
Average Rectified Current (Io): 500 mA
Forward Voltage Drop (Vf): 630 mV @ 500 mA
Recovery Time: < 500 ns
Reverse Recovery Current: 80 μA @ 30 V
Capacitance: 22 pF @ 1 V and 1 MHz
Operating Temperature: 150°C
